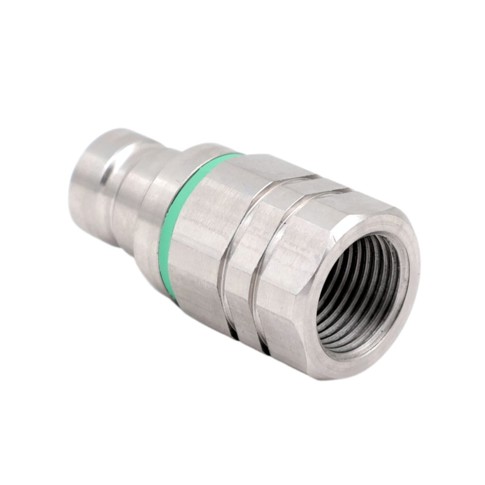

Cejn coupling nipple

Application:

With endless combination possibilities, Cejn's range of drip-free couplings are suitable for most applications and systems. The spill-free design ensures virtually zero spillage and eliminates contamination as well as air ingress during connection and disconnection. The series is available in three configurations: Free flow, single shut-off and double shut-off.

Series 577 (1/2“) 677 (3/4”) 777 (1") is also available with color coding and/or security coding for added safety. Optional gasket material on request.

Construction:

• Precision manufactured dry-break coupling suitable for liquid cooling
• Safety lock function to prevent accidental disconnection
• One-hand operated quick coupling with compact dimensions
• Part number 0255775xxx comes without valve
• Part number 0255776xxx comes with valve

Quality:

Made of stainless steel AISI 316.

Temperature:

Temperature range from -20°C to +150°C.

Max working pressure 20 bar.

Minimum burst pressure 80 bar.
