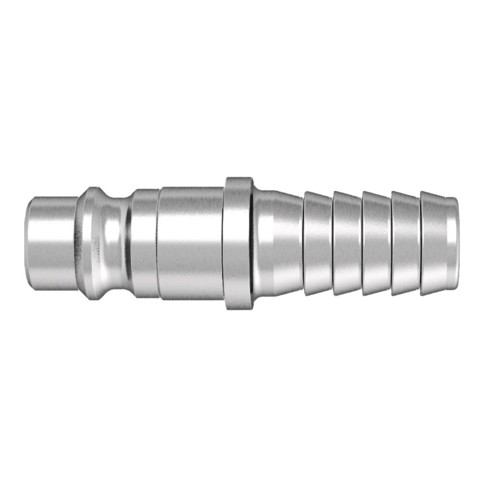

Cejn eSafe hose tail

Cejn eSafe hose tail

Application:

CEJN's food-approved eSafe hose tail, series 326, DN 7.6 is designed for applications and systems that require a reliable and easy-to-grip coupling. With a unique built-in safety feature, the eSafe series 326 eliminates pneumatic recoil while maintaining a high flow rate compared to other safety couplings.

Construction:

  • Constructed with stainless steel components for durability and longevity
  • Ideal for aggressive environments such as food processing, cleaning agents or the offshore industry
  • The coupling complies with ISO standard 4414

Quality:

Made of stainless steel AISI 316.

Temperature:

Temperature range from -20 °C to +100 °C.

Maximum working pressure 70 bar.

Minimum bursting pressure 280 bar.

Standards:

EC 1935/2004, EC 2023/2006 - GRAS, ANSI, NSF.

Approvals:

Fda Food Quality Blue Rgb
Download data sheet
Item number Connection
1
Nominal dim.
inch
Nominal dim.
mm.
Working pressure
bar
Burst pressure
bar
Air flow - l/mm. Connection force - N. Net weight
kg.
Base unit Quantity
0253265002 6,3mm (1/4") 6,2 70 280 1800 102 PCS
0253265003 8,00mm (5/16") 6,2 70 280 1800 102 PCS
0253265004 10mm (3/8") 3/8 6,2 70 280 1800 102 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
