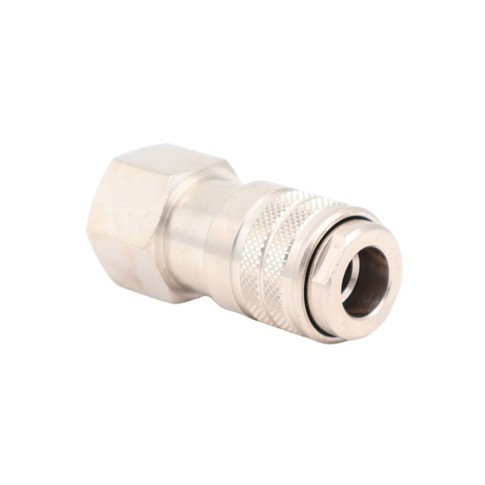

Compressed air coupling housing, female BSP, galvanized

Application:

Compressed air coupling housing with internal thread suitable for connecting compressed air.

Construction:

  • Designed with valve that closes when disconnecting the connection
  • Good flow properties resulting in a small pressure drop through the coupling
  • Cejn 320 compatible

Quality:

  • Made of hardened galvanized steel
  • Housing in nickel-plated brass, valve in brass, locking cap in hardened galvanized steel
  • Balls and spring in stainless steel
  • Nitrile rubber gasket

Temperature:

The temperature ranges from -30°C to +100°C.
Maximum working pressure of 35 bar and a burst pressure of 140 bar.

Download data sheet
Item number Nominal dim.
inch
Connection
RG
Working pressure
bar
Base unit Quantity
0253201202 5/16" 1/4" 16,0 PCS
0253201204 5/16" 3/8" 16,0 PCS
0253201205 5/16" 1/2" 16,0 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
