Compressed air coupling housing, female BSP thread

Application:

Compressed air coupling housing suitable for connection of compressed air, pneumatic tools, and industrial machines.

Construction:

  • Designed with valve that closes when disconnecting the connection
  • Good flow properties resulting in a small pressure drop through the coupling
  • Cejn 320 + 326 compatible

Quality:

  • Made of stainless steel AISI 316
  • NBR gaskets

Temperature:

The temperature ranges from -20°C to +100°C.
Maximum safety pressure of 35 bar.

Download data sheet

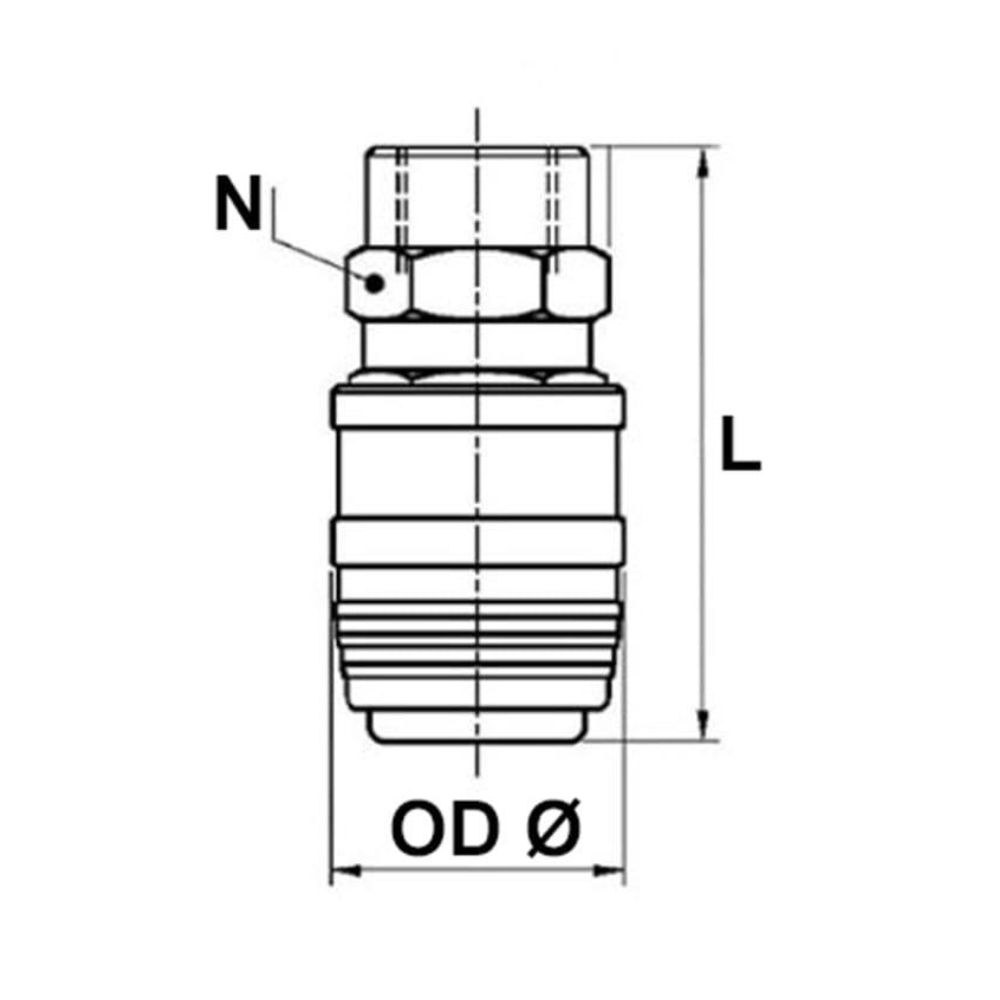

Item number Nominal dim.
inch
Connection
RG
OD Ø dia.
mm.
Length L
mm.
Key width NV
mm.
Working pressure
bar
Net weight
kg.
Base unit Quantity
0261020002 5/16" 1/4" 24,4 51,7 19,0 12,0 0,130 PCS
0261020006 5/16" 3/8" 24,4 52,7 19,0 12,0 0,130 PCS
0261020010 5/16" 1/2" 24,4 57,2 22,0 12,0 0,130 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
