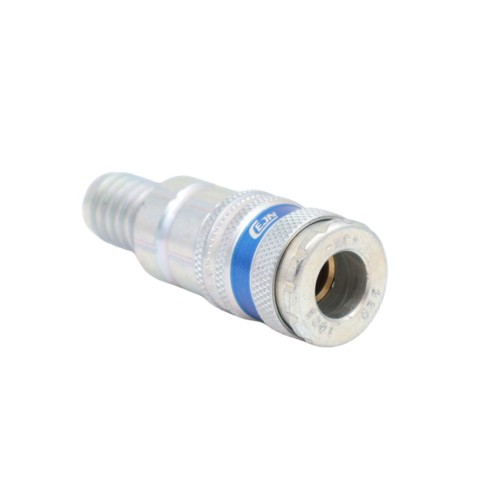

Compressed air coupling housing, hose tail

Application:

Compressed air coupling housing with hose connection suitable for connection of compressed air.

Construction:

  • Designed with valve that closes when disconnecting the connection
  • Good flow properties resulting in a small pressure drop through the coupling
  • Cejn 320 compatible

Quality:

  • Made of hardened galvanized steel
  • Housing in nickel-plated brass, valve in brass, locking cap in hardened galvanized steel
  • Balls and spring in stainless steel
  • Nitrile rubber gasket

Temperature:

The temperature ranges from -30°C to +100°C.
Maximum working pressure of 35 bar and a burst pressure of 140 bar.

Item number Nominal dim.
inch
Ø ID hose
mm.
Working pressure
bar
Base unit Quantity
0253201002 5/16" 6,3 16,0 PCS
0253201003 5/16" 8,0 16,0 PCS
0253201004 5/16" 10,0 16,0 PCS
0253201005 5/16" 13,0 16,0 PCS
