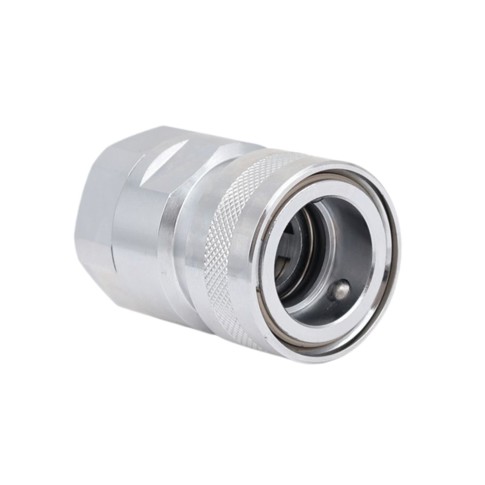

Water coupling, female BSP with stop valve

Application:

Nito-compatible water coupling housing with stop valve and sleeve. Suitable e.g. connection of water hoses.

Construction:

The coupling housing is designed for fast and safe hose connections.

Quality:

  • Housing and locking cap made of chromed brass
  • Spring, locking ring and balls made of stainless steel
  • Nitrile rubber gasket

Temperature:

The temperature ranges from -30°C to +80°C.
Maximum working pressure of 25 bar.

Download data sheet
Item number Nominal dim.
inch
Connection
RG
Type Base unit Quantity
0201053530 1/2" 3/4" 53530A3 PCS
0201053531 1/2" 1/2" 5353RA3 PCS
0201063530 3/4" 3/4" 63530A3 PCS
0201073530 1" 1" 73530A3 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
