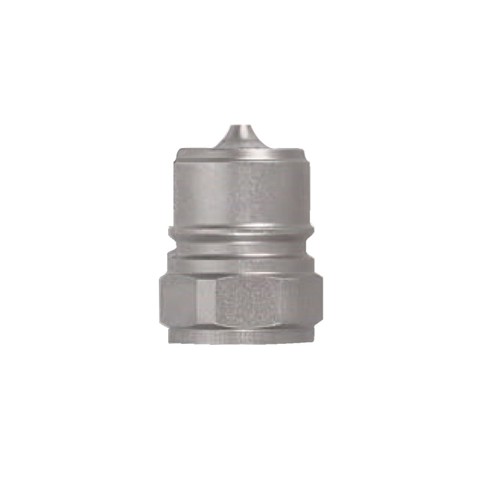

High-pressure coupling nipple, female BSP, series 3800

Application:

High-pressure coupling nipple suitable for liquids.

Construction:

  • Viton gasket
  • KEW compatible

Quality:

Made of stainless steel AISI 316.

Standard:

ISO 7241/2-2000.

Temperature:

The temperature ranges from -25°C to +200°C.
Maximum working pressure of 350 bar.

At temperatures below -40°C and up to +200°C, special coupling can be supplied with other sealing materials.

Download data sheet
Item number Nominal dim.
inch		 Connection
RG		 D Dia.
mm.		 Length L
mm.		 Key width NV
mm.		 Valve Working pressure
bar		 Base unit Quantity
0262038200 3/8" 3/8" 21,0 38,0 22,0 Without 230,0 PCS
0262038201 3/8" 3/8" 21,0 42,0 22,0 With 230,0 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
