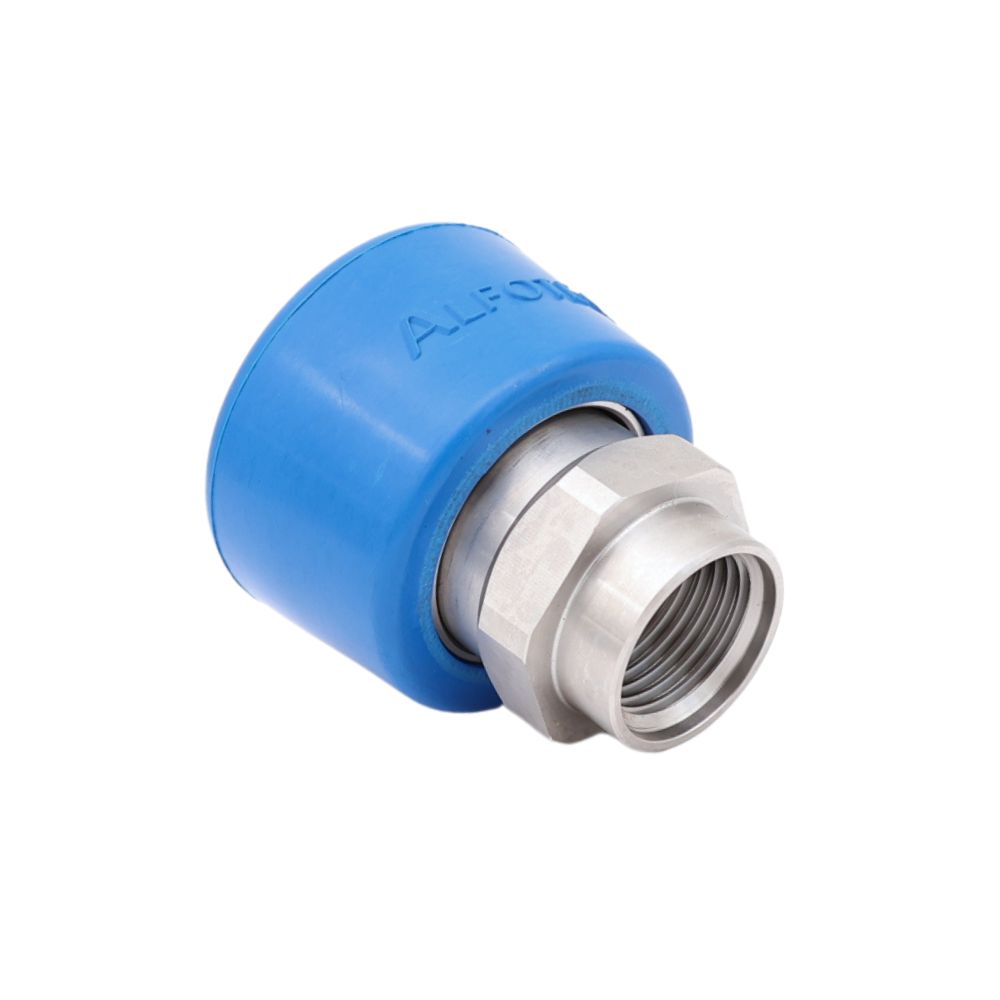

Low-pressure coupling housing

Application:

AFT low-pressure coupling housing suitable e.g. use on 20 bar cleaning system.

Construction:

Designed to achieve a high level of sanitation and a long service life. Can be delivered with or without rubber protection.

Quality:

  • Made of stainless steel AISI 316
  • Housing, spring, and balls made of stainless steel
  • Gaskets and protection ring made of nitrile rubber

Temperature:

The temperature ranges from -20°C to +100°C.
Maximum working pressure 200 bar.

Download data sheet
Item number Nominal dim.
inch		 Connection
RG		 Beskyttelse Base unit Quantity
0290009080 1/2" 3/8" Without PCS
0290009100 1/2" 1/2" Without PCS
0290009102 1/2" 1/2" With PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
