Push-on male connector, BSPT

Application:

Push-on hexagon nipple with BSPT thread and suitable for air, water, and food.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

Made of stainless steel AISI 316.

Temperature:

The temperature ranges from -40°C to +140°C.
Maximum working pressure of 25 bar at +20°C.

Download data sheet

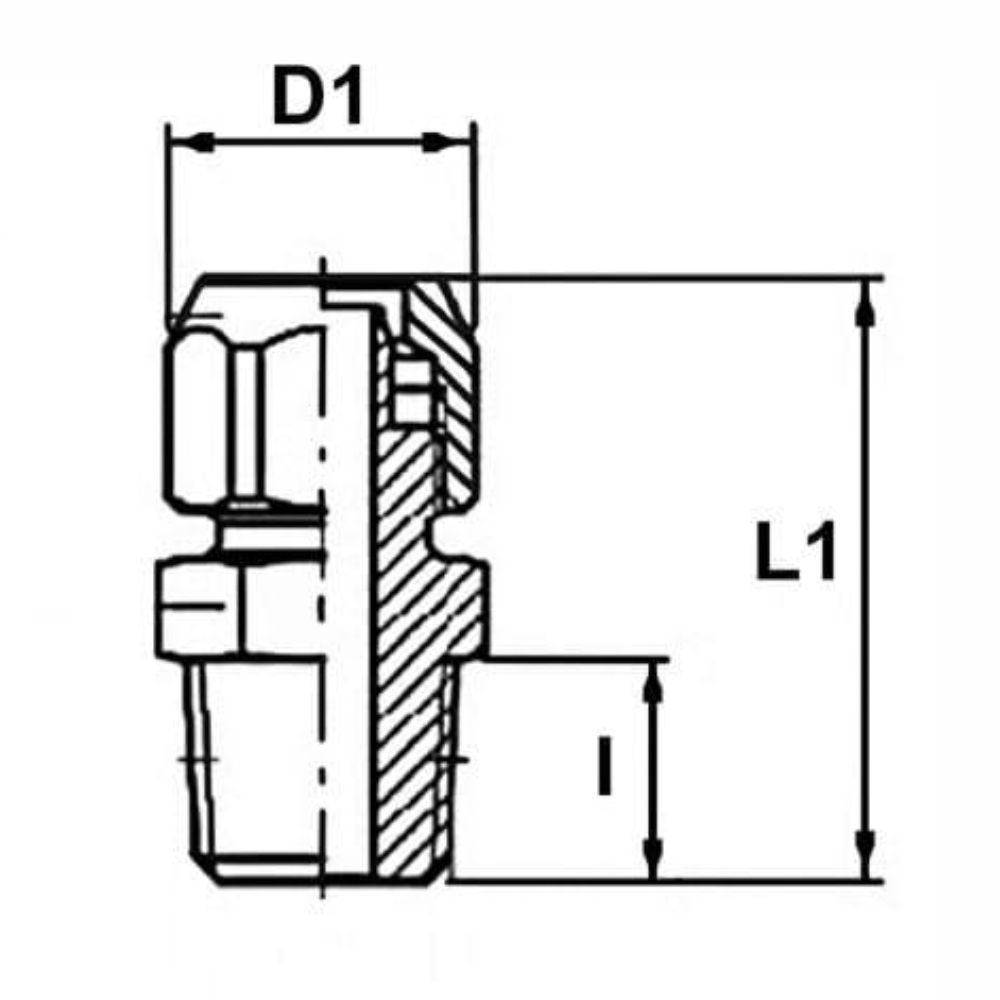

Item number Nominal dim.
mm.
Connection
RG
D1 dia.
mm.
Installation dim. L1
mm.
Thread length I
mm.
Net weight
kg.
Base unit Quantity
0278280601 6,0 1/8" 13,0 26,0 7,5 0,014 PCS
0278280602 6,0 1/4" 13,0 30,0 11,0 0,021 PCS
0278280801 8,0 1/8" 15,5 26,0 7,5 0,017 PCS
0278280802 8,0 1/4" 15,5 30,0 11,0 0,024 PCS
0278281002 10,0 1/4" 18,5 31,5 7,5 0,030 PCS
0278281003 10,0 3/8" 18,5 32,0 11,5 0,040 PCS
0278281204 12,0 1/2" 21,0 36,5 14,0 0,034 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
