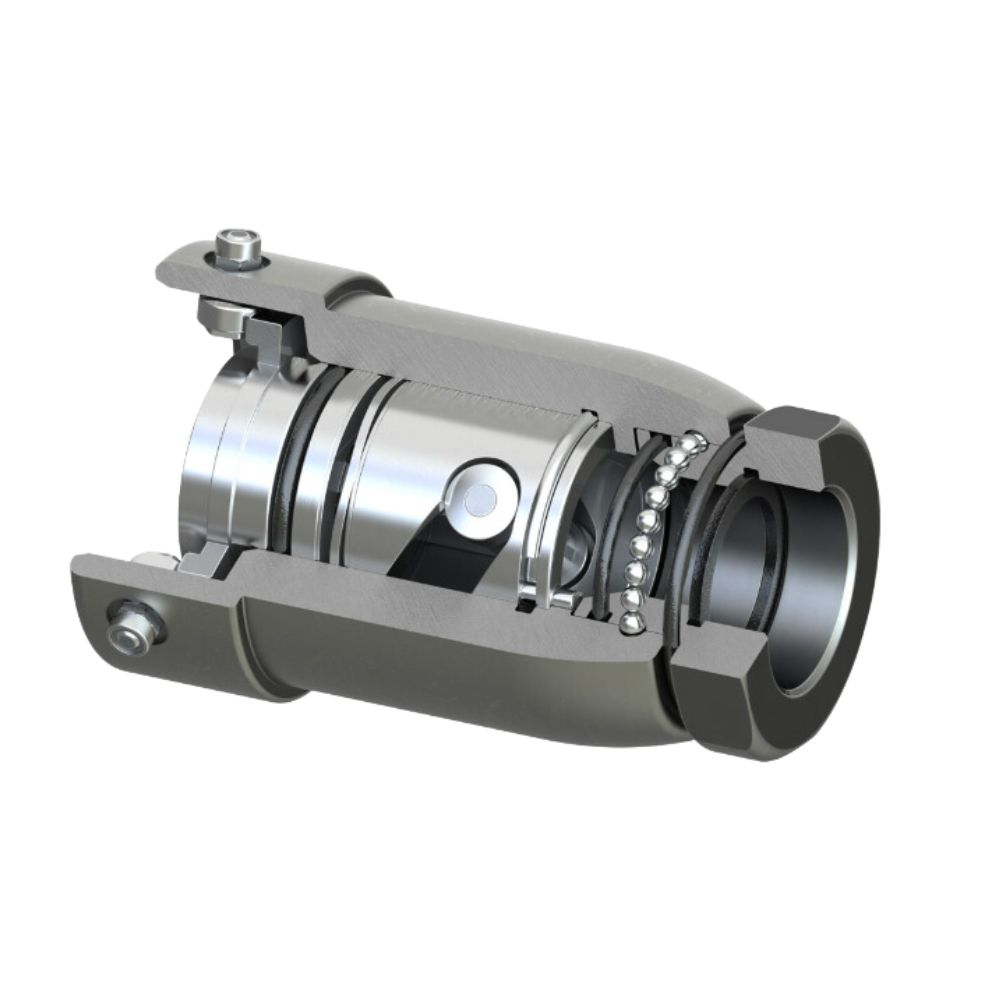

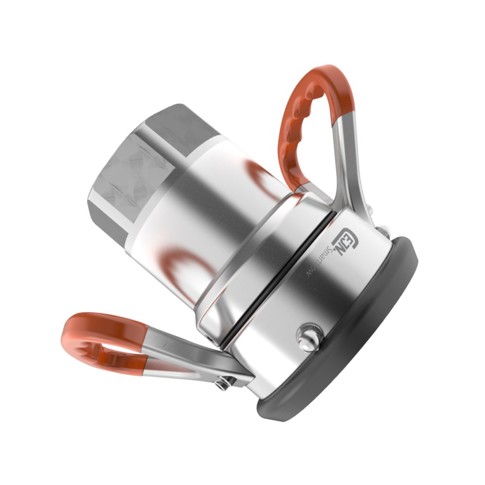

CEJN dry break coupling, female, hose unit

Application:

CEJN dry break couplings are designed for fluid transfer in safety-critical and aggressive environments. The couplings provide spill-free connections and disconnections, requiring minimal components and no additional valves. This design is time efficient and reduces costs, making it an ideal solution for fluid handling.

The hose unit couplings are available in 5 different sizes with different applications.

Construction:

  • 1" - Comes without handles. Suitable for IBC applications.
  • 2" - Available with either a single or double handle. Commonly used in chemical, road tanker, Adblue, and food & drink industries.
  • 2¹/²" - Comes with 2 handles. Commonly used for aviation, road and rail tanker industries.
  • 3" - Comes with 2 handles. Designed for higher flow rates, common in the road, marine, petroleum, rail tanker, oil and gas industries.
  • 4" - Available with either 2 handles or a wheel. Designed for higher pressure and flow rates, common in offshore oil and gas industry.

Quality:

Made of stainless steel AISI 316 / EN 1.4401.

Operating conditions:

Temperature range from -20°C to +60°C.
25 bar working pressure with 5x safety factor.

Standards:

All sizes are compatible with TODO and MannTek dry break couplings. Follows the NATO STANAG 3756 Standard. FDA approved O-rings to meet the high requirements for hygiene within the food and beverage industry.

Approvals:

Fda Food Quality Blue Rgb
Download data sheet
Item number Remark Nominal dim.
inch
Connection
RG
Length L
mm.
A dia.
mm
B dia. - mm. Key width NV
mm.
Working pressure
bar
Base unit Quantity
047358000025 no handle 1" 1" 110 110 79 50 25 PCS
047358000050 one handle 2" 2" 149 149 200 65 25 PCS
047358000065 two handles 2½" 2½" 193 193 242 98 25 PCS
047358000080 two handles 3" 3" 193 193 257 98 25 PCS
047358000100 wheel 4" 4" 226 226 342 122 25 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
