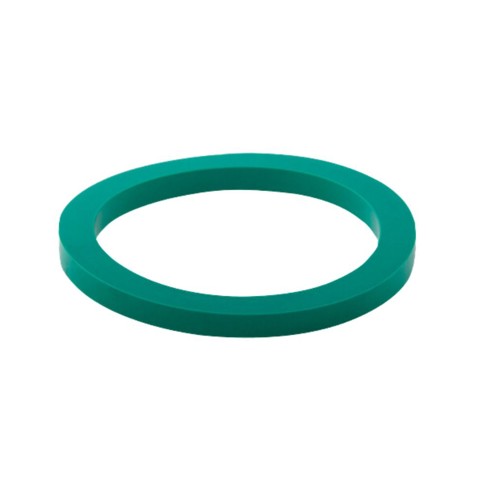

TW flat gasket, MK & MB

Application:

Flat gasket used for tanker couplings. Suitable for normal pressure and vacuum.

Construction:

Made of various materials such as Hypalon, NBR, Viton, silicone, and PTFE. See table below.

Download data sheet

Item number	Nominal dim. inch	Type	ID Ø dia. mm.	OD Ø dia. mm.	Height H mm.	Material type	Color	Base unit
0471510500	2"	50	49,0	61,5	4,8	Hypalon	Green	PCS
0471510502	2"	50	49,0	61,5	4,8	EPDM	Green	PCS
0471510800	3"	80	77,0	90,0	6,0	Hypalon	Green	PCS
0471510801	3"	80	77,0	92,0	6,0	NBR - FDA	Black	PCS
0471510802	3"	80	77,0	90,0	6,0	EPDM	Green	PCS
0471510803	3"	80	77,0	90,0	6,0	PTFE	White	PCS
0471510804	3"	80	77,0	88,0	3,0	PTFE	White	PCS
0471510806F	3"	80	77,0	90,0	6,0	EPDM	Green	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
