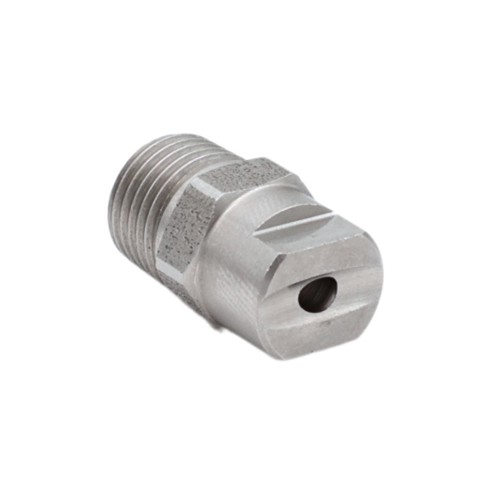

Flushing nozzles
Flushing nozzles
Flushing nozzles

Flushing nozzles

Application:

Nozzle for rinsing in connection with foam systems.

Quality:

Made of stainless steel AISI 316.

Download data sheet
Item number Funktion Connection
RG		 Angle
degrees		 Water flow
l/min at 2.8 bar		 Nozzle
type		 Base unit Quantity
0600000020 Flush 1/4" 0 7,5 00/20 PCS
0600000030 Flush 1/4" 0 11,3 00/30 PCS
0600000040 Flush 1/4" 0 15,2 00/40 PCS
0600000050 Flush 1/4" 0 19,1 00/50 PCS
0600015015 Flush 1/4" 15 5,7 15/15 PCS
0600015020 Flush 1/4" 20 7,5 15/20 PCS
0600015030 Flush 1/4" 15 11,3 15/30 PCS
0600015040 Flush 1/4" 15 15,2 15/40 PCS
0600015050 Flush 1/4" 15 19,1 15/50 PCS
0600015100 Flush 3/8" 15 38,1 15/100 PCS
0600025015 Flush 1/4" 25 6,0 25/15 PCS
0600025030 Flush 1/4" 25 11,3 25/30 PCS
0600025040 Flush 1/4" 25 15,2 25/40 PCS
0600040002 Flush 1/4" 40 2,0 40/02 PCS
0600040030 Flush 1/4" 40 15,2 40/30 PCS
0600040034 Flush 1/4" 40 3,4 40/34 PCS
0600040045 Flush 1/4" 40 4,5 40/45 PCS
0600065030 Flush 1/4" 65 16,7 65/30 PCS
0600080002 Flush 1/4" 80 0,8 80/02 PCS
0600090025 Flush 1/4" 90 9,5 90/25 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
