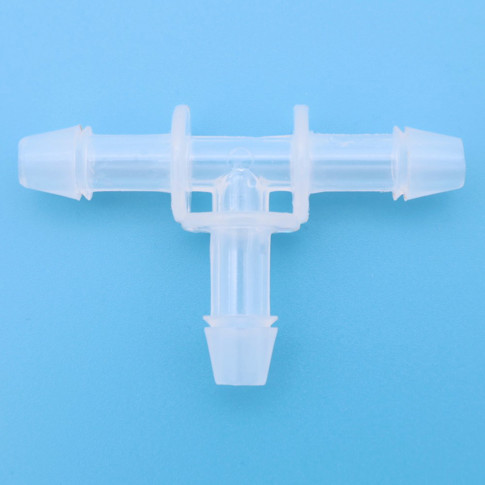

T-connector PP

Application:

The T-connector, made of PP plastic, is specially developed to meet the liner requirements for disposable components in biotechnological and pharmaceutical applications. It is an optimal assembly solution for the pharmaceutical industry and suitable for aseptic hose connections and single-use assemblies.

Construction:

The T-connector is made of polypropylene and manufactured in an ISO-7 certified cleanroom. It is supplied in packs of 10, which are double wrapped to ensure aseptic handling.

Sterilization:

Autoclave up to 135˚C for a maximum of 30 minutes
Gamma irradiation up to 50 KGy

Storage Conditions:

Store in original packaging when possible
Keep in a cool, dry environment away from direct sunlight
Avoid exposure to stress or harsh chemicals
Suitable for warehouse conditions between 5°C and -40°C

Standards:

FDA 21 CFR 177.1520 , USP <88> Biological Reactivity Tests (In Vivo) and USP <87> Biological Reactivity Tests (In Vitro), REACH, RoHS, TSE/BSE free. The connection is free from melamine, phthalates, and Bisphenol A.

Item number	Nominal dim. mm.	Nominal dim. inch	Antal per enhed	Base unit
P019965020064	6,4 x 6,4 x 6,4 mm	1/4"	10	PCS
P019965020095	9,5 x 9,5 x 9,5 mm	3/8"	10	PCS
P019965020127	12,7 x 12,7 x 12,7 mm	1/2"	10	PCS
P019965020191	19,1 x 19,1 x 19,1 mm	3/4"	10	PCS

Item number

Nominal dim.
mm.

Nominal dim.
inch

Antal per enhed

Base unit

Quantity

P019965020064

6,4 x 6,4 x 6,4 mm

1/4"

PCS

P019965020095

9,5 x 9,5 x 9,5 mm

3/8"

PCS

P019965020127

12,7 x 12,7 x 12,7 mm

1/2"

PCS

P019965020191

19,1 x 19,1 x 19,1 mm

3/4"

PCS
