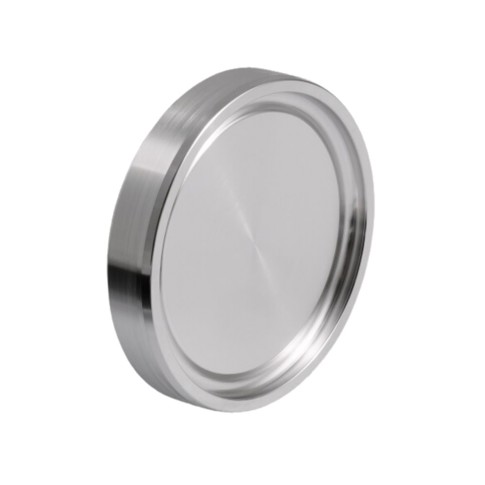

Blind liner, aseptic, DIN 11864-C, inch

Blind liner, aseptic, DIN 11864-C, inch

Follows the standard DIN 11864, series C.

Made of stainless steel AISI 316L / EN 1.4404.

Download data sheet

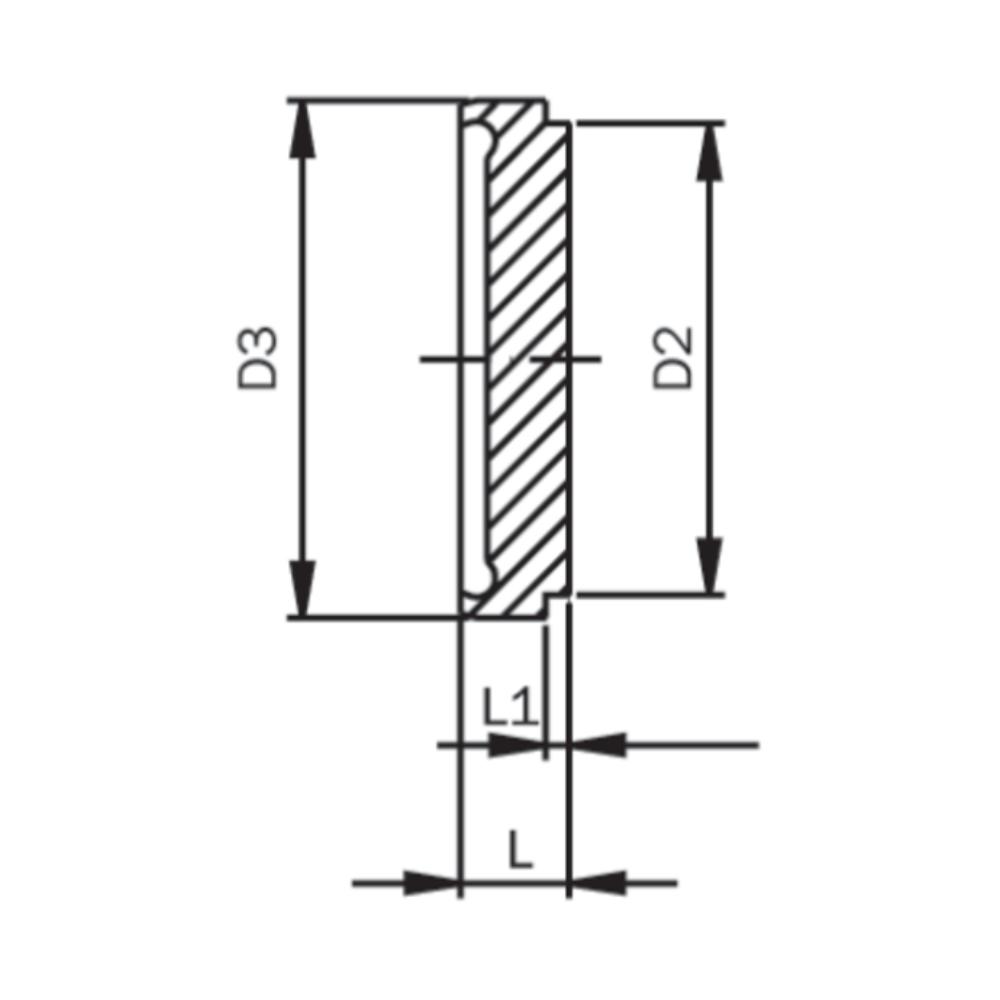

Item number Nominal dim.
inch
D2 dia.
mm.
Dia. mm.
D3
Installation dim. L1
mm.
Length L
mm.
Net weight
kg.
Base unit Quantity
0102235015C 1/2" 18,0 21,9 3,0 9,0 0,02 PCS
0102235020C 3/4" 24,0 27,9 3,0 9,0 0,03 PCS
0102235025C 1" 35,0 42,9 3,0 12,0 0,10 PCS
0102235040C 1½" 48,0 54,9 3,0 13,0 0,16 PCS
0102235050C 2" 61,0 66,9 3,0 14,0 0,27 PCS
0102235065C 2½" 79,0 84,9 4,0 16,0 0,52 PCS
0102235080C 3" 93,0 98,9 4,0 16,0 0,70 PCS
0102235100C 4" 114,0 118,9 5,0 20,0 1,37 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
