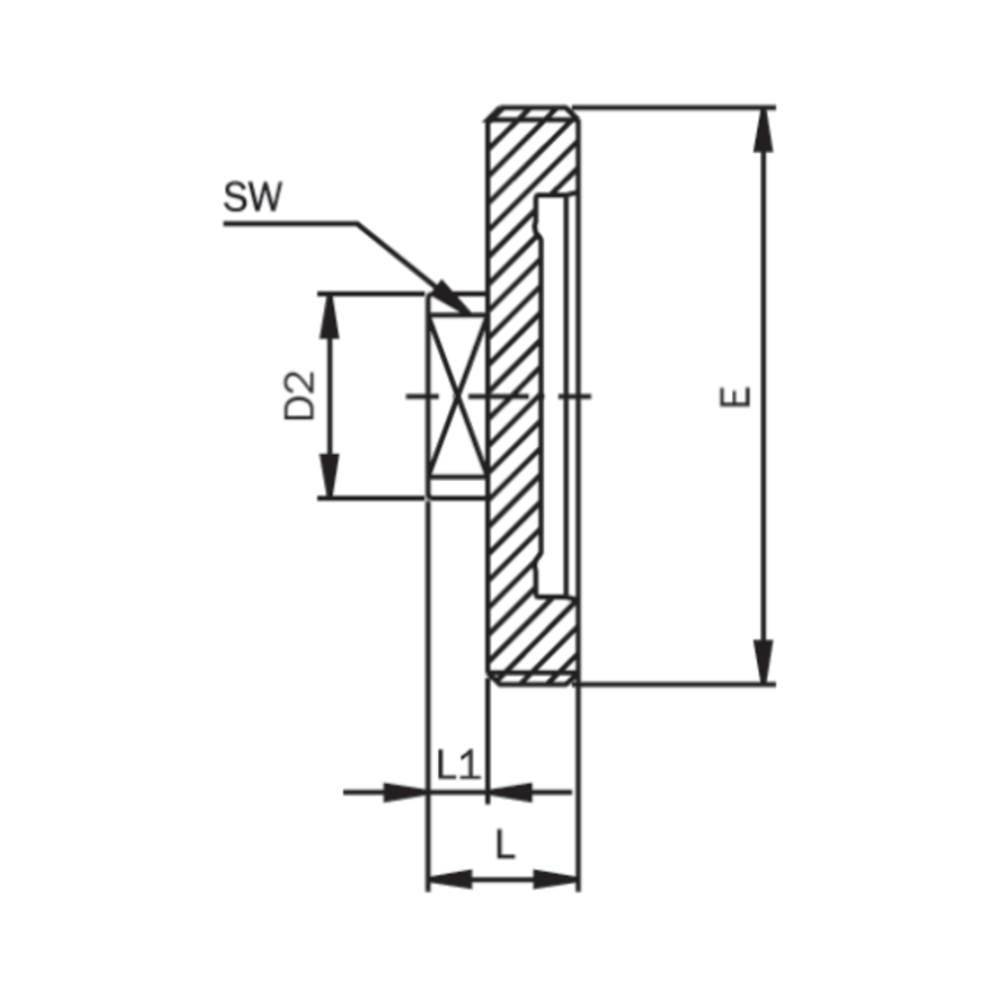

Blind nipple, aseptic DIN 11864-A, DIN

Blind nipple, aseptic DIN 11864-A, DIN

Follows the standard DIN 11864, series A.

Made of stainless steel AISI 316L / EN 1.4404.

Download data sheet
Item number Nom. dim. - DN Installation dim. L1
mm.
Length L
mm.
Thread Net weight
kg.
Base unit Quantity
0102230010A 10 12,0 24,0 RD 28 x 1/8" 0,07 PCS
0102230015A 15 12,0 24,0 RD 34 x 1/8" 0,10 PCS
0102230020A 20 10,0 24,0 RD 44 x 1/6" 0,16 PCS
0102230025A 25 10,0 24,0 RD 52 x 1/6" 0,23 PCS
0102230032A 32 10,0 24,0 RD 58 x 1/6" 0,25 PCS
0102230040A 40 10,0 24,0 RD 65 x 1/6" 0,30 PCS
0102230050A 50 10,0 24,0 RD 78 x 1/6" 0,39 PCS
0102230065A 65 12,0 28,0 RD 95 x 1/6" 0,60 PCS
0102230080A 80 8,0 28,0 RD 110 x 1/4" 1,07 PCS
0102230100A 100 10,0 30,0 0RD 130 x 1/4" 1,27 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
