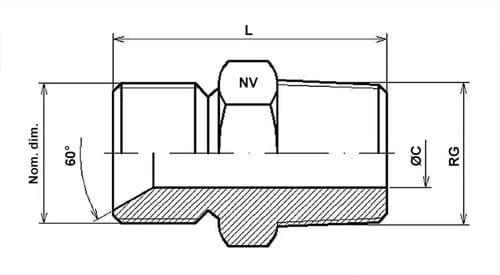

Hexagon nipple, 60 degrees at one end, BSPT

Hexagon nipple with 60 degree cone at end and nipple, BSPT thread.

Made of stainless steel AISI 316.
Pressure stage 10 bar.

Download data sheet

Item number	Nominal dim. inch	Connection RG	C dia. mm.	Length L mm.	Key width NV mm.	Base unit
0492349020	1/8"	1/8"	4,0	23,5	11,0	PCS
0492349060	1/4"	1/4"	6,0	30,5	17,0	PCS
0492349080	3/8"	3/8"	8,0	32,0	19,0	PCS
0492349100	1/2"	1/2"	11,0	38,0	22,0	PCS
0492349130	3/4"	3/4"	17,5	40,0	27,0	PCS
0492349150	1"	1"	22,0	52,0	36,0	PCS
0492349170	1 1/4"	1 1/4"	28,0	56,0	46	PCS
0492349190	1½"	1½"	32,0	59,0	50	PCS
0492349230	2"	2"	46,0	69,0	65,0	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
