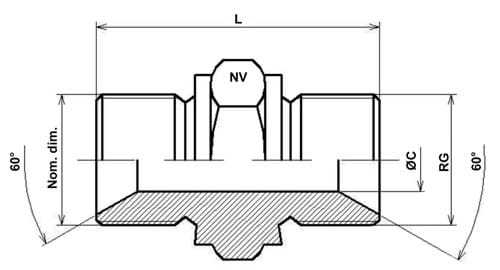

Hexagon nipple, 60 degrees x 60 degrees

Hexagon nipple with 60 degree cone at both ends.

Made of stainless steel AISI 316.
Pressure stage 10 bar.

Download data sheet
Item number Nominal dim.
inch
Connection
RG
C dia.
mm.
Length L
mm.
Key width NV
mm.
Base unit Quantity
0492309020 1/8" 1/8" 5,0 25,0 14,0 PCS
0492309060 1/4" 1/4" 6,0 32,0 17,0 PCS
0492309080 3/8" 3/8" 8,0 35,0 22,0 PCS
0492309100 1/2" 1/2" 11,0 43,0 27,0 PCS
0492309115 5/8" 5/8" 14,0 45,0 30,0 PCS
0492309130 3/4" 3/4" 16,0 45,0 32,0 PCS
0492309150 1" 1" 22,0 54 41,0 PCS
0492309170 1 1/4" 1 1/4" 28,0 58,0 50,0 PCS
0492309190 1 1/2" 1 1/2" 33,0 62 55,0 PCS
0492309230 2" 2" 46,0 71,0 65,0 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
