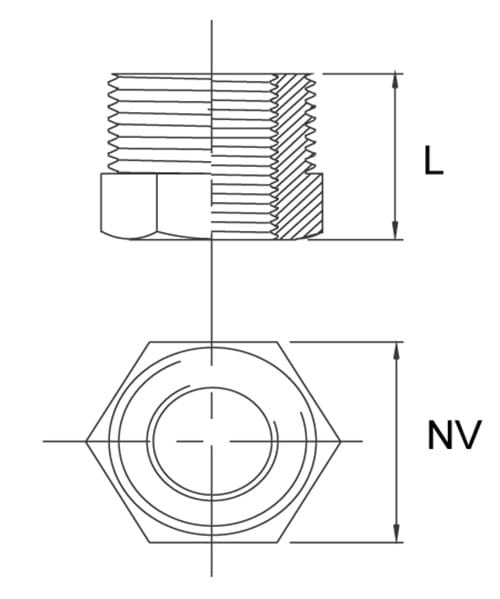

Reducing bushing

Made of stainless steel AISI 316.
Pressure stage 10 bar.

Download data sheet
Item number Nominal dim.
inch
Length L
mm.
Key width NV
mm.
Net weight
kg.
Base unit Quantity
0100099060 1/4" x 1/8" 17,0 17,0 0,015 PCS
0100099080 3/8" x 1/4" 19,0 21,0 0,020 PCS
0100099081 3/8" x 1/8" 19,0 21,0 0,020 PCS
0100099100 1/2" x 3/8" 21,0 26,0 0,036 PCS
0100099101 1/2" x 1/4" 21,0 26,0 0,040 PCS
0100099102 1/2" x 1/8" 21,0 26,0 0,050 PCS
0100099130 3/4" x 1/2" 24,0 30,0 0,055 PCS
0100099131 3/4" x 3/8" 24,0 30,0 0,055 PCS
0100099132 3/4" x 1/4" 24,0 30,0 0,060 PCS
0100099150 1" x 3/4" 28,0 38,0 0,080 PCS
0100099151 1" x 1/2" 28,0 38,0 0,080 PCS
0100099152 1" x 3/8" 28,0 38,0 0,100 PCS
0100099170 1 1/4" 1" 30,0 46,0 0,100 PCS
0100099171 1 1/4" x 3/4" 30,0 46,0 0,100 PCS
0100099172 1 1/4" x 1/2" 30,0 46,0 0,180 PCS
0100099190 1 1/2" x 1 1/4" 31,0 52,0 0,180 PCS
0100099191 1 1/2" x 1" 31,0 52,0 0,200 PCS
0100099192 1 1/2" x 3/4" 31,0 52,0 0,220 PCS
0100099193 1 1/2" x 1/2" 31,0 62,0 0,240 PCS
0100099230 2" x 1 1/2" 34,0 64,0 0,370 PCS
0100099231 2" x 1" 34,0 64,0 0,370 PCS
0100099232 2" x 1 1/4" 34,0 64,0 0,300 PCS
0100099250 2 1/2 " x 2" 40,0 80,0 0,240 PCS
0100099272 3" x 2 1/2" 43,0 94,0 0,600 PCS
0100099290 4” x 3” 44,0 116,0 1,26 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
