Reducing bushing

Made of stainless steel AISI 316.
Pressure stage 10 bar.

Download data sheet

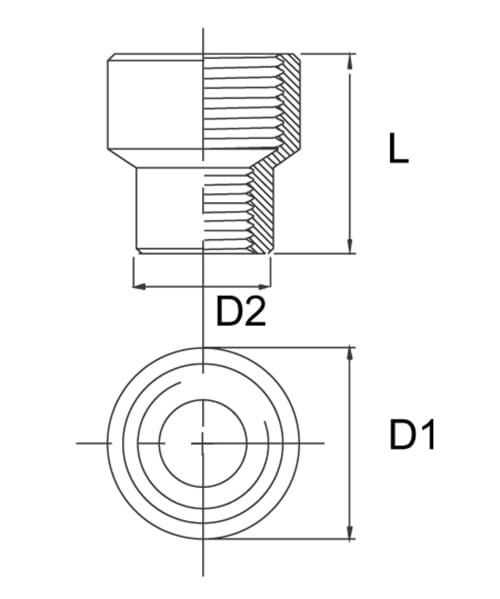

Item number	Nominal dim. inch	D1 dia. mm.	D2 dia. mm.	Length L mm.	Net weight kg.	Base unit
0100159060	1/4" x 1/8"	21,0	17,0	28,0	0,033	PCS
0100159080	3/8" x 1/4"	25,0	21,0	29,0	0,047	PCS
0100159100	1/2" x 3/8"	28,0	25,0	35,0	0,068	PCS
0100159101	1/2" x 1/4"	28,0	21,0	32,0	0,068	PCS
0100159130	3/4" x 1/2"	34,0	28,0	39,0	0,095	PCS
0100159131	3/4" x 3/8"	34,0	25,0	36,0	0,095	PCS
0100159150	1" x 3/4"	42,3	35,0	42,0	0,130	PCS
0100159151	1" x 1/2"	42,0	28,0	41,0	0,130	PCS
0100159170	1 1/4" x 1"	51,0	42,5	48,5	0,150	PCS
0100159171	1 1/4" x 3/4"	51,0	34,4	45,0	0,190	PCS
0100159172	1 1/4" x 1/2"	51,0	20,5	43,4	0,190	PCS
0100159190	1 1/2" x 1 1/4"	59,0	51,0	54	0,260	PCS
0100159191	1 1/2" x 1"	59,0	42,3	51,0	0,260	PCS
0100159195	1½" x ½"	58,0	0	52,0	0,29	PCS
0100159230	2" x 1 1/2"	70,7	59,0	56,5	0,400	PCS
0100159231	2" x 1 1/4"	72,5	52,5	67,5	0,400	PCS
0100159232	2” x 1”	71,7	42,0	56,0	0,400	PCS
0100159250	2 1/2" x 2"	88,0	71,5	65,5	0,750	PCS
0100159270	3" x 2"	103,5	72,5	74,5	1,150	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
