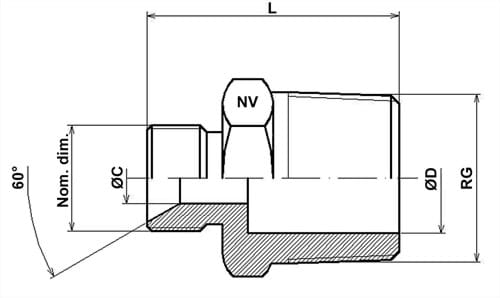

Reducing nipple, hexagon, 60 degrees at one end, BSPT

Hexagon nipple, reduced with 60 degree cone at end and nipple, BSPT thread.

Made of stainless steel AISI 316.
Pressure stage 10 bar.

Download data sheet

Item number	Nominal dim. inch	Connection RG	C dia. mm.	D dia. mm.	Length L mm.	Key width NV mm.	Base unit
0492339060	1/8"	1/4"	3,5	8,0	28,5	17,0	PCS
0492339080	1/4"	3/8"	6,0	06,0	031,0	19,0	PCS
0492339100	1/4"	1/2"	5,0	6,0	37,5	22,0	PCS
0492339101	3/8"	1/2"	8,0	8,0	38,5	22,0	PCS
0492339130	3/8"	3/4"	8,0	17,5	40,0	27,0	PCS
0492339131	1/2"	3/4"	11,0	17,5	42,0	27,0	PCS
0492339150	1/2"	1"	11,0	22,0	47	36,0	PCS
0492339151	3/4"	1"	17,5	022,0	49,0	36,0	PCS
0492339170	1"	1 1/4"	22,0	26,0	55,0	46,0	PCS
0492339190	1 1/4"	1 1/2"	26,0	32,0	57,0	50,0	PCS
0492339230	1 1/2"	2"	32,0	46,0	66,0	65,0	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
