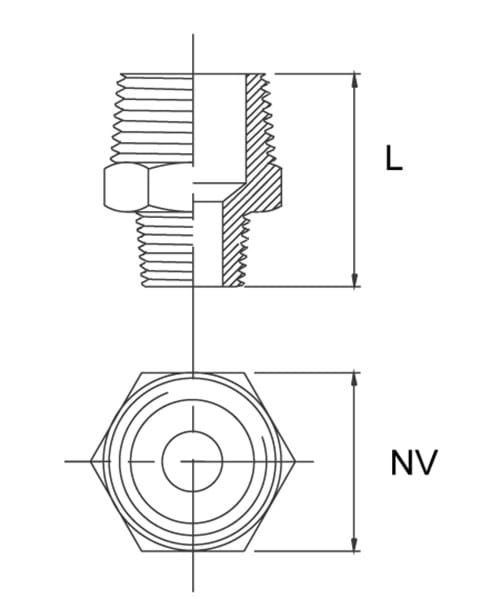

Reducing nipple, hexagon

Made of stainless steel AISI 316.
Pressure stage 10 bar.

Download data sheet
Item number Nominal dim.
inch
Length L
mm.
Key width NV
mm.
Net weight
kg.
Base unit Quantity
0100109060 1/4" x 1/8" 31,0 16,0 0,020 PCS
0100109080 3/8" x 1/4" 35,0 20,0 0,035 PCS
0100109081 3/8" x 1/8" 35,0 20,0 0,035 PCS
0100109100 1/2" x 3/8" 37,0 23,0 0,052 PCS
0100109101 1/2" x 1/4" 37,0 23,0 0,052 PCS
0100109130 3/4" x 1/2" 41,0 29,0 0,085 PCS
0100109131 3/4" x 3/8" 41,0 29,0 0,085 PCS
0100109150 1" x 3/4" 42,0 36,0 0,120 PCS
0100109151 1" x 1/2" 42,0 36,0 0,120 PCS
0100109152 1" x 3/8" 42,0 36,0 0,120 PCS
0100109170 1 1/4" x 1" 46,0 47,0 0,190 PCS
0100109171 1 1/4" x 3/4" 46,0 47,0 0,190 PCS
0100109172 1 1/4" x 1/2" 46,0 47,0 0,190 PCS
0100109190 1 1/2" x 1 1/4" 51,0 55,0 0,270 PCS
0100109191 1 1/2" x 1" 51,0 55,0 0,270 PCS
0100109230 2" x 1 1/2" 64,0 65,0 0,400 PCS
0100109231 2" x 1 1/4" 64,0 65,0 0,400 PCS
0100109232 2" x 1" 64,0 65,0 0,400 PCS
0100109270 3" x 2" 66 95 1,03 PCS
0100109271 3" x 2½" 68 92,5 1,36 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
