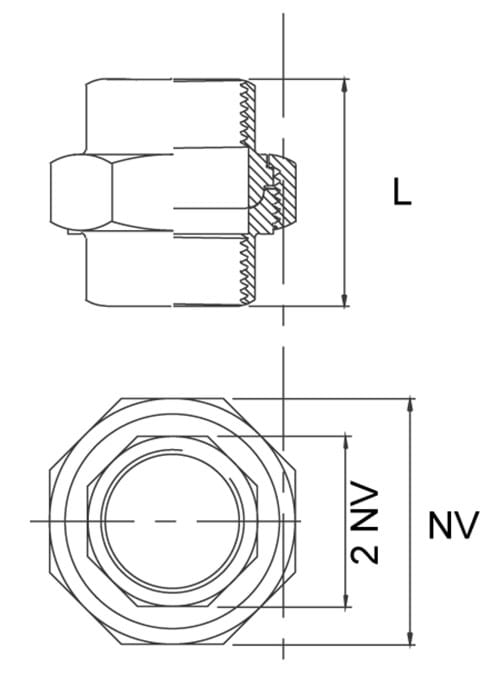

Union, weld/weld, conical

Made of stainless steel AISI 316.
Pressure stage 10 bar.

Download data sheet
Item number Nominal dim.
inch
Length L
mm.
Key width NV
mm.
Key width 2 nut
mm
Net weight
kg.
Base unit Quantity
0100279080 3/8" 38,0 34,5 17,2 0,078 PCS
0100279100 1/2" 40,0 39,0 21,3 0,078 PCS
0100279130 3/4" 47,5 46,0 26,9 0,112 PCS
0100279150 1" 49,5 55,0 33,7 0,147 PCS
0100279170 1 1/4" 54 65,5 42,4 0,210 PCS
0100279190 1 1/2" 57,0 74,0 48,3 0,306 PCS
0100279230 2" 59,0 86,0 60,3 0,455 PCS
0100279250 2 1/2" 69,5 106,0 76,1 0,590 PCS
0100279290 3" 81,5 124,0 88,9 0,885 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
