Cutting ring

Application:

Used for compressed air, water, oil, and chemical products.

Construction:

Made of stainless steel AISI 316.

Pressure:

Working pressure at 20°C, 6-15 mm for 250 bar, 18-22 mm for 160 bar.

Temperature:

The temperature ranges from -60°C to +400°C.

Download data sheet

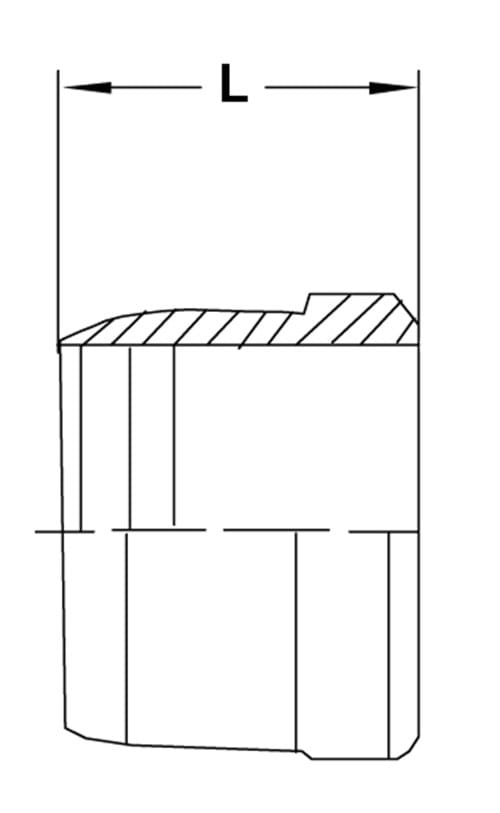

Item number	Pipe dim. 1 - mm.	Length L mm.	Net weight kg.	Base unit
0100600060	6,0	9,0	0,001	PCS
0100600080	8,0	9,0	0,001	PCS
0100600100	10,0	10,0	0,002	PCS
0100600120	12,0	10,0	0,002	PCS
0100600150	15,0	10,0	0,003	PCS
0100600180	18,0	10,0	0,003	PCS
0100600220	22,0	10,5	0,003	PCS
0100600280	28,0	10,5	-	PCS
0100600350	35,0	13,0	0,003	PCS
0100600420	42,0	13,5	-	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
