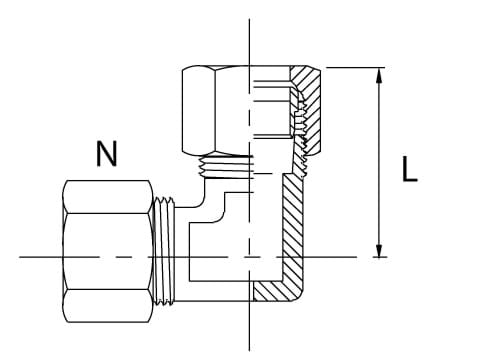

Elbow union

Application:

Suitable for i.a. connection of hoses in smaller dimensions.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

Made of stainless steel AISI 316L, DIN 2353.

Temperature:

The temperature ranges from -40°C to +120°C without reduction in pressure.
Working pressure at +20°C, 250 bar for 6-15 mm, 160 bar for 18-22 mm.

Download data sheet

Item number	Pipe dim. 1 - mm.	Installation dim. L mm.	Key width mm.	Working pressure bar	Net weight kg.	Base unit
0100610006	6,0	27,0	14,0	315,0	0,050	PCS
0100610008	8,0	29,0	17,0	315,0	0,071	PCS
0100610010	10,0	30,0	19,0	315,0	0,100	PCS
0100610012	12,0	32,0	22,0	315,0	0,170	PCS
0100610015	15,0	36,0	27,0	315,0	0,205	PCS
0100610018	18,0	40,0	32,0	315,0	0,310	PCS
0100610022	22,0	44,0	36,0	160,0	0,330	PCS
0100610028	28,0	47,0	41,0	160,0	-	PCS
0100610035	35,0	56,0	50,0	160,0	-	PCS
0100610042	42,0	63,0	60,0	160,0	-	PCS
