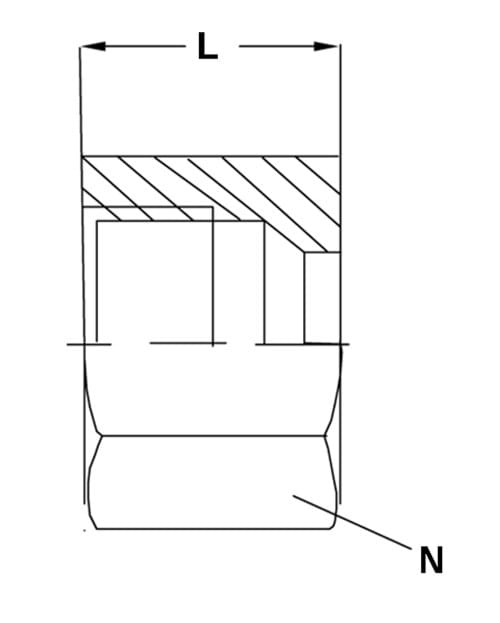

Nut

Application:

Used for compressed air, water, oil, and chemical products.

Construction:

Made of stainless steel AISI 316.

Pressure:

Working pressure at 20°C, 6-15 mm for 250 bar, 18-22 mm for 160 bar.

Temperature:

The temperature ranges from -60°C to +400°C.

Download data sheet

Item number	Pipe dim. 1 - mm.	Length L mm.	Key width mm.	Thread	Base unit
0100680060	6,0	14,5	14,0	M12 x 1,5	PCS
0100680080	8,0	14,5	17,0	M14 x 1,5	PCS
0100680100	10,0	15,5	19,0	M16 x 1,5	PCS
0100680120	12,0	15,5	22,0	M18 x 1,5	PCS
0100680150	15,0	17,0	27,0	M22 x 1,5	PCS
0100680180	18,0	18,0	32,0	M26 X 1,5	PCS
0100680220	22,0	20,0	36,0	M30 X 2,0	PCS
0100680280	28,0	21,0	41,0	M36 2,0	PCS
0100680350	35,0	24,0	50,0	M45 X 2,0	PCS
0100680420	42,0	24,0	60,0	M52 2,0	PCS
