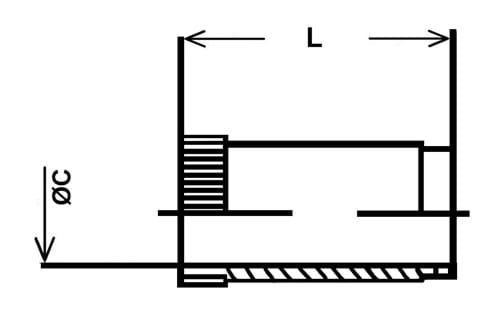

Reinforcing ring

Application:

Used for compressed air, water, oil, and chemical products.

Construction:

Made of stainless steel AISI 316.

Pressure:

Working pressure at 20°C, 6-15 mm for 250 bar, 18-22 mm for 160 bar.

Temperature:

The temperature ranges from -60°C to +400°C.

Download data sheet

Item number	Pipe dim. 1 - mm.	Length L mm.	Base unit
0100690040	4,0	15,5	PCS
0100690060	6,0	15,5	PCS
0100690080	8,0	17,0	PCS
0100690100	10,0	17,0	PCS
0100690120	12,0	18,0	PCS
0100690140	14,0	18,0	PCS
0100690160	16,0	22,0	STK.
0100690180	18,0	22,0	PCS
0100690200	20,0	18,0	STK.
0100690220	22,0	24,0	STK.
0100690250	25,0	22,0	PCS
0100690310	31,0	18,0	STK.
0100690380	38,0	24,0	STK.

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
