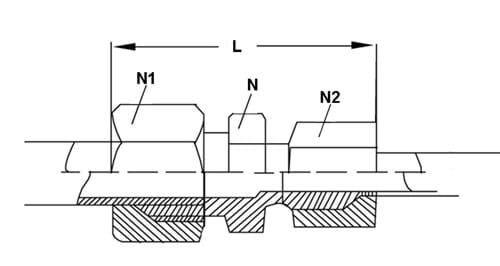

Straight reducing union in stainless steel

Straight reducing union

Application:

Used for compressed air, water, oil, and chemical products.

Construction:

Made of stainless steel AISI 316.

Pressure:

Working pressure at 20°C, 6-15 mm for 250 bar, 18-22 mm for 160 bar.

Temperature:

The temperature ranges from -60°C to +400°C.

Item number	Pipe dim. 1 - mm.	Length L mm.	Key width mm.	Key width nut mm	Key width nut 2 mm	Working pressure bar	Net weight kg.	Base unit
0100670806	8,0 / 6,0	41,0	14,0	17,0	14,0	315,0	-	PCS
0100671006	10,0 / 6,0	42,0	017,0	19,0	14,0	315,0	-	PCS
0100671008	10,0 / 8,0	42,0	17,0	19,0	19,0	315,0	-	PCS
0100671206	12,0 / 6,0	-	12,0	-	-	315,0	-	PCS
0100671208	12,0 / 8,0	43,0	19,0	22,0	17,0	315,0	-	PCS
0100671210	12,0 /10,0	44,0	19,0	22,0	19,0	315,0	-	PCS
0100671506	15,0 / 6,0	-	-	-	-	315,0	-	PCS
0100671508	15,0 / 8,0	-	-	-	-	315,0	-	PCS
0100671510	15,0 / 10,0	45,0	24,0	27,0	019,0	315,0	-	PCS
0100671512	15,0 / 12,0	45,0	24,0	27,0	22,0	315,0	-	PCS
0100671808	18,0 / 8,0	-	-	-	-	315,0	-	PCS
0100671810	18,0 / 10,0	-	-	-	-	315,0	-	PCS
0100671812	18,0 / 12,0	47,0	27,0	32,0	22,0	315,0	-	PCS
0100671815	18,0 / 15,0	48,0	27,0	32,0	27,0	315,0	-	PCS
0100672212	22,0 / 12,0	-	-	-	-	160,0	-	PCS
0100672215	22,0 / 15,0	50,0	32,0	36,0	27,0	160,0	-	PCS
0100672218	22,0 / 18,0	051,0	32,0	36,0	032,0	160,0	-	PCS
0100672822	28,0 / 22,0	54,0	41,0	41,0	036,0	160,0	-	PCS
0100673528	35,0 /28,0	59,0	46,0	50,0	41,0	160,0	-	PCS
0100674228	42,0 / 28,0	-	-	-	-	160,0	-	PCS
0100674235	42,0 / 35,0	66,0	55,0	60,0	50,0	160,0	-	PCS

Item number

Pipe dim. 1 - mm.

Length L
mm.

Key width
mm.

Key width nut
mm

Key width nut 2
mm

Working pressure
bar

Net weight
kg.

Base unit

Quantity

0100670806

8,0 / 6,0

41,0

14,0

17,0

14,0

315,0

PCS

0100671006

10,0 / 6,0

42,0

017,0

19,0

14,0

315,0

PCS

0100671008

10,0 / 8,0

42,0

17,0

19,0

315,0

PCS

0100671206

12,0 / 6,0

12,0

315,0

PCS

0100671208

12,0 / 8,0

43,0

19,0

22,0

17,0

315,0

PCS

0100671210

12,0 /10,0

44,0

19,0

22,0

19,0

315,0

PCS

0100671506

15,0 / 6,0

315,0

PCS

0100671508

15,0 / 8,0

315,0

PCS

0100671510

15,0 / 10,0

45,0

24,0

27,0

019,0

315,0

PCS

0100671512

15,0 / 12,0

45,0

24,0

27,0

22,0

315,0

PCS

0100671808

18,0 / 8,0

315,0

PCS

0100671810

18,0 / 10,0

315,0

PCS

0100671812

18,0 / 12,0

47,0

27,0

32,0

22,0

315,0

PCS

0100671815

18,0 / 15,0

48,0

27,0

32,0

27,0

315,0

PCS

0100672212

22,0 / 12,0

160,0

PCS

0100672215

22,0 / 15,0

50,0

32,0

36,0

27,0

160,0

PCS

0100672218

22,0 / 18,0

051,0

32,0

36,0

032,0

160,0

PCS

0100672822

28,0 / 22,0

54,0

41,0

036,0

160,0

PCS

0100673528

35,0 /28,0

59,0

46,0

50,0

41,0

160,0

PCS

0100674228

42,0 / 28,0

160,0

PCS

0100674235

42,0 / 35,0

66,0

55,0

60,0

50,0

160,0

PCS
