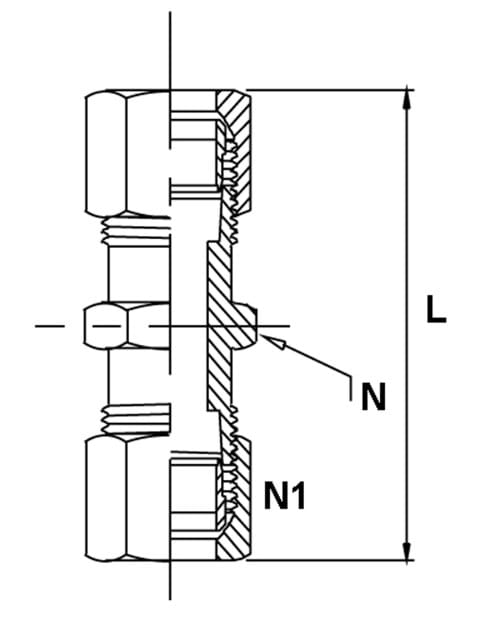

Straight union

Application:

Suitable for i.a. connection of hoses in smaller dimensions.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

Made of stainless steel AISI 316L, DIN 2353.

Temperature:

The temperature ranges from -40°C to +120°C without reduction in pressure.

Download data sheet

Item number	Pipe dim. 1 - mm.	Length L mm.	Key width mm.	Key width nut mm	Working pressure bar	Net weight kg.	Base unit
0100630006	6,0	39,0	12,0	14,0	315,0	0,040	PCS
0100630008	8,0	40,0	14,0	17,0	315,0	0,049	PCS
0100630010	10,0	42,0	17,0	19,0	315,0	0,074	PCS
0100630012	12,0	43,0	19,0	22,0	315,0	0,132	PCS
0100630015	15,0	46,0	24,0	27,0	315,0	0,142	PCS
0100630018	18,0	48,0	27,0	32,0	315,0	0,220	PCS
0100630022	22,0	52,0	32,0	36,0	160,0	0,220	PCS
0100630028	28,0	54,0	41,0	41,0	160,0	-	PCS
0100630035	35,0	63,0	46,0	50,0	160,0	-	PCS
0100630042	42,0	66,0	55,0	60,0	160,0	-	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
