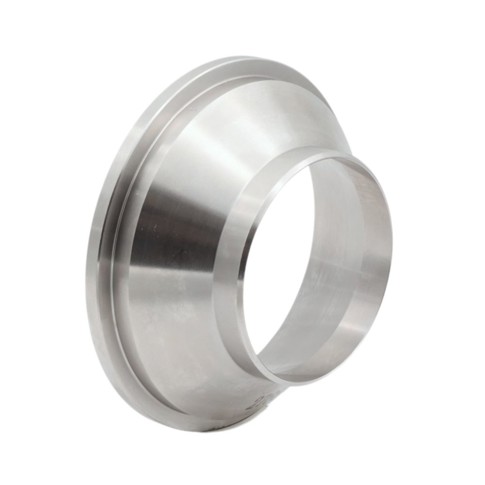

DS reduction liner, weld on

DS reduction liner, weld on

Internal surface roughness is R 0.8 µ, and each unit is marked with a batch number.

DS reduction liner, weld on is designed with a collar for welding onto stainless steel dairy pipes.

Made of stainless steel AISI 316L / EN 1.4404.

Download data sheet
Item number Nominal dim.
mm.
A dia.
mm
D dia.
mm.
D2 dia.
mm.
Length B
mm
Net weight
kg.
Base unit Quantity
0101181380 38,0 / 25,0 54,0 25,0 38,0 29,0 PCS
0101181510 51,0 / 25,0 66,0 25,0 51,0 50,0 PCS
0101181511 51,0 / 38,0 66,0 38,0 51,0 29,0 PCS
0101181640 63,5 / 38,0 81,0 38,0 63,5 50,0 PCS
0101181641 63,5 / 51,0 81,0 51,0 63,5 29,0 PCS
0101181761 76,1 / 51,0 93,0 51,0 76,1 50,0 PCS
0101181762 76,1 / 63,5 93,0 63,5 76,1 29,0 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
