Clamp liner (Tri-Clamp), ASME-BPE Clamp liner (Tri-Clamp), ASME-BPE
Clamp liner (Tri-Clamp), ASME-BPE

Clamp liner (Tri-Clamp), ASME-BPE

Made of AISI 316L / EN 1.4404 stainless steel. We offer various types of surface finishes, including SF1 with a maximum surface roughness of R 0.51 µ on the inside and SF4 with a maximum surface roughness of R 0.38 µ.

Provided with a batch number. Designed with collar for welding on stainless steel dairy pipes.

Download data sheet

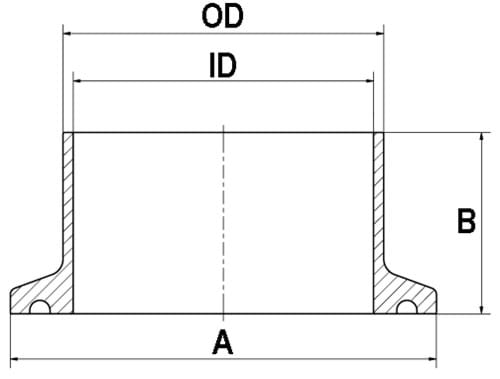

Item number Nominal dim.
inch		 A dia.
mm		 ID Ø dia.
mm.		 OD Ø dia.
mm.		 Length B
mm		 Type Base unit Quantity
0101460127 1/2" 25,0 9,4 12,7 12,7 SF1, Ra <0,5µ PCS
0101460191 3/4" 25,0 15,7 19,1 12,7 SF1, Ra <0,5µ PCS
0101460250 1" 50,4 22,1 25,4 12,7 SF1, Ra <0,5µ PCS
0101460380 1½" 50,4 34,8 38,1 12,7 SF1, Ra <0,5µ PCS
0101460510 2" 63,9 47,5 50,8 12,7 SF1, Ra <0,5µ PCS
0101460640 2½" 77,4 60,2 63,5 12,7 SF1, Ra <0,5µ PCS
0101460760 3" 90,9 72,9 76,2 12,7 SF1, Ra <0,5µ PCS
0101461020 4" 118,9 97,4 101,6 15,9 SF1, Ra <0,5µ PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
