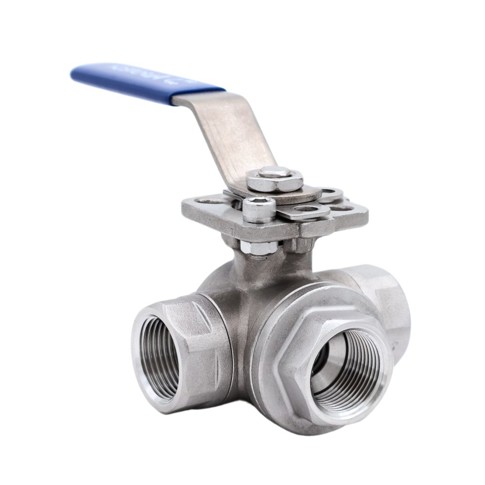

Ball valve, 3-way, L-drilled

Application:

3-way ball valve, L-bore for shutting off liquids, including saturated steam.

Construction:

  • Smooth and easy-to-clean exterior surface
  • Handle with automatic safety lock
  • Reduced passage
  • With female BSP

Quality:

  • Made of stainless steel AISI 316
  • Gasket made of PTFE

Operating conditions:

  • The temperature covers from -50°C to +220°C
  • Steam: Max. 15 bar at +180°C
  • Pressure: Max. 70 bar
Download data sheet

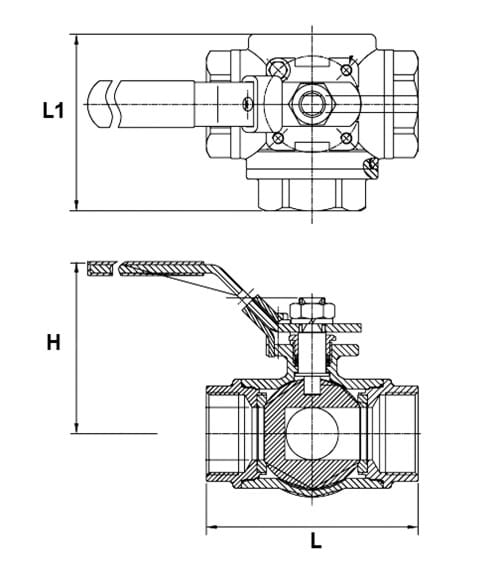

Item number Nominal dim.
inch
Connection
RG
Length L
mm.
Installation dim. L1
mm.
Height H
mm.
Working pressure
bar
Net weight
kg.
Base unit Quantity
0528009060 1/4" 1/4" 76,0 58,5 67,0 63,0 0,400 PCS
0528009080 3/8" 3/8" 76,0 58,5 67,0 63,0 0,400 PCS
0528009100 1/2" 1/2" 76,0 58,5 67,0 63,0 0,400 PCS
0528009130 3/4" 3/4" 86,0 72,0 77,0 63,0 0,400 PCS
0528009150 1" 1" 99,0 81,5 83,0 63,0 0,700 PCS
0528009170 1 1/4" 1 1/4" 117,0 94,5 88,0 63,0 0,900 PCS
0528009190 1 1/2" 1 1/2" 124,0 104,0 116,0 63,0 2,200 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
