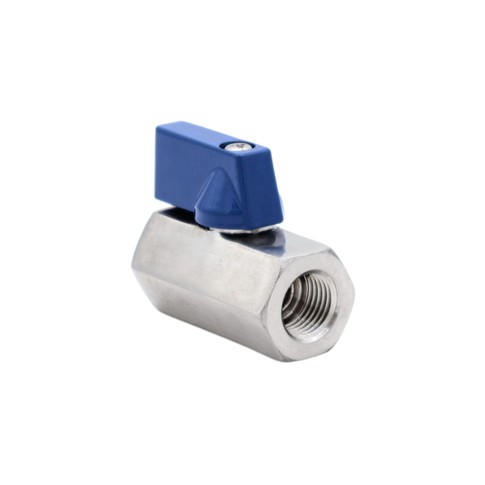

Mini ball valve, female/female

Application:

Mini ball valves suitable for air, water, and other liquids.

Construction:

Smooth and easy-to-clean exterior surface.

Quality:

  • Made of stainless steel AISI 316
  • The handle is made of aluminium and the gasket is made of PTFE

Operating conditions:

  • The temperature ranges from -25°C to +180°C
  • Pressure: Max. 63 bar
Download data sheet
Item number Nominal dim.
inch		 Connection
RG		 Length L
mm.		 Height H
mm.		 Working pressure
bar		 Net weight
kg.		 Base unit Quantity
0525039060 1/4" 1/4" 42,0 26,5 63,0 0,083 PCS
0525039080 3/8" 3/8" 42,0 26,5 63,0 0,083 PCS
0525039100 1/2" 1/2" 46,0 28,3 63,0 0,116 PCS
0525039130 3/4" 3/4" 54 31,5 63,0 0,193 PCS
0525039150 1" 1" 65,0 34,0 63,0 0,235 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
