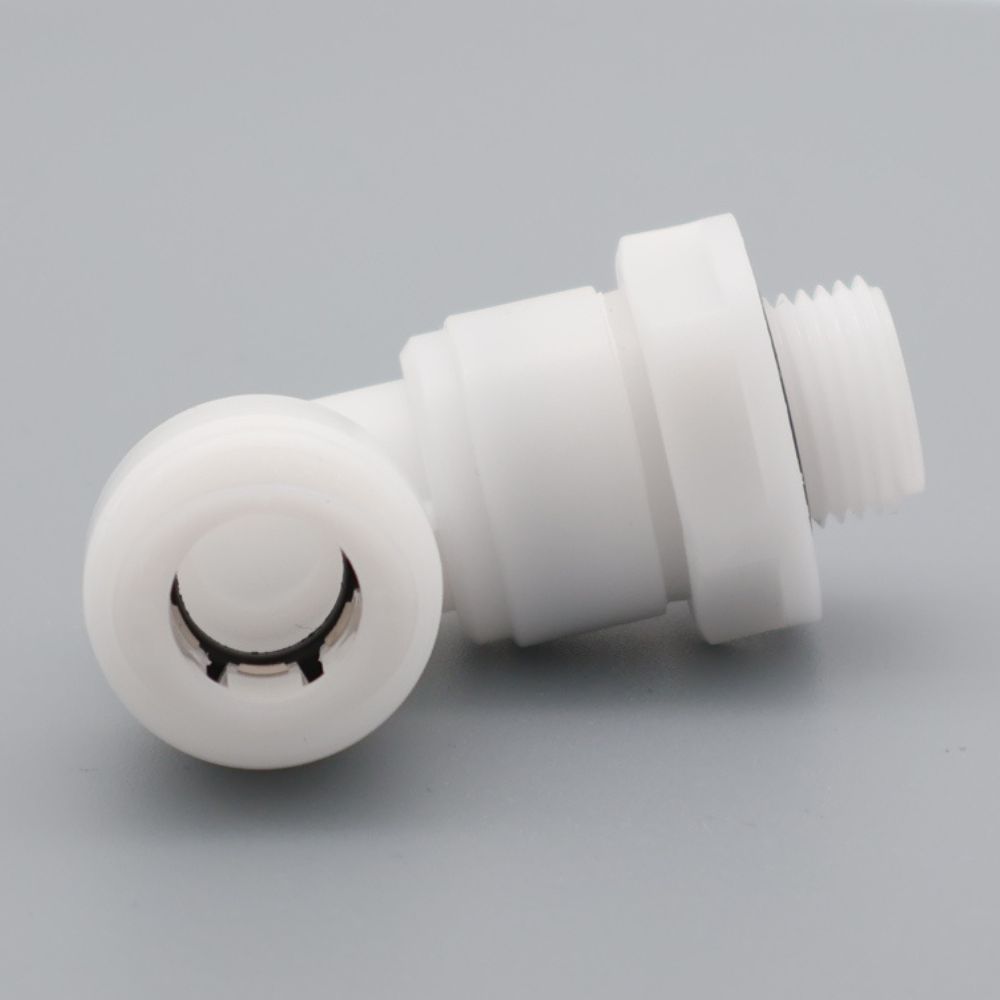

Push-in male swivel elbow, BSPP
Push-in male swivel elbow, BSPP
Push-on male connector, BSPT
Push-on male connector, BSPT

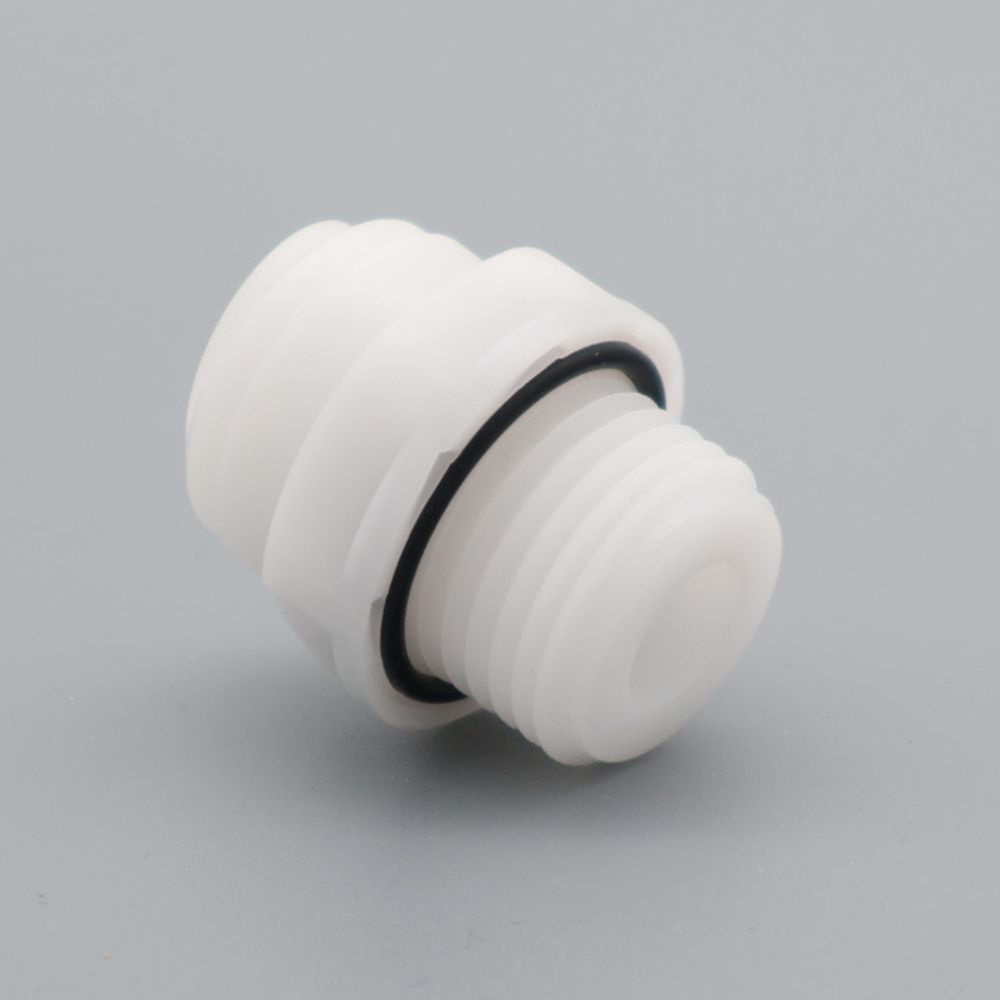

Push-in male connector

Application:

Push-in hexagon nipple and BSPP thread suitable for compressed air hoses in connection with pneumatically controlled components within food, chemical and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

  • Made of POM
  • EPDM gasket

Standards:

EC 1935/2004.

Temperature:

The temperature ranges from +1°C to +98°C.
Working pressure 20 bar.

Download data sheet

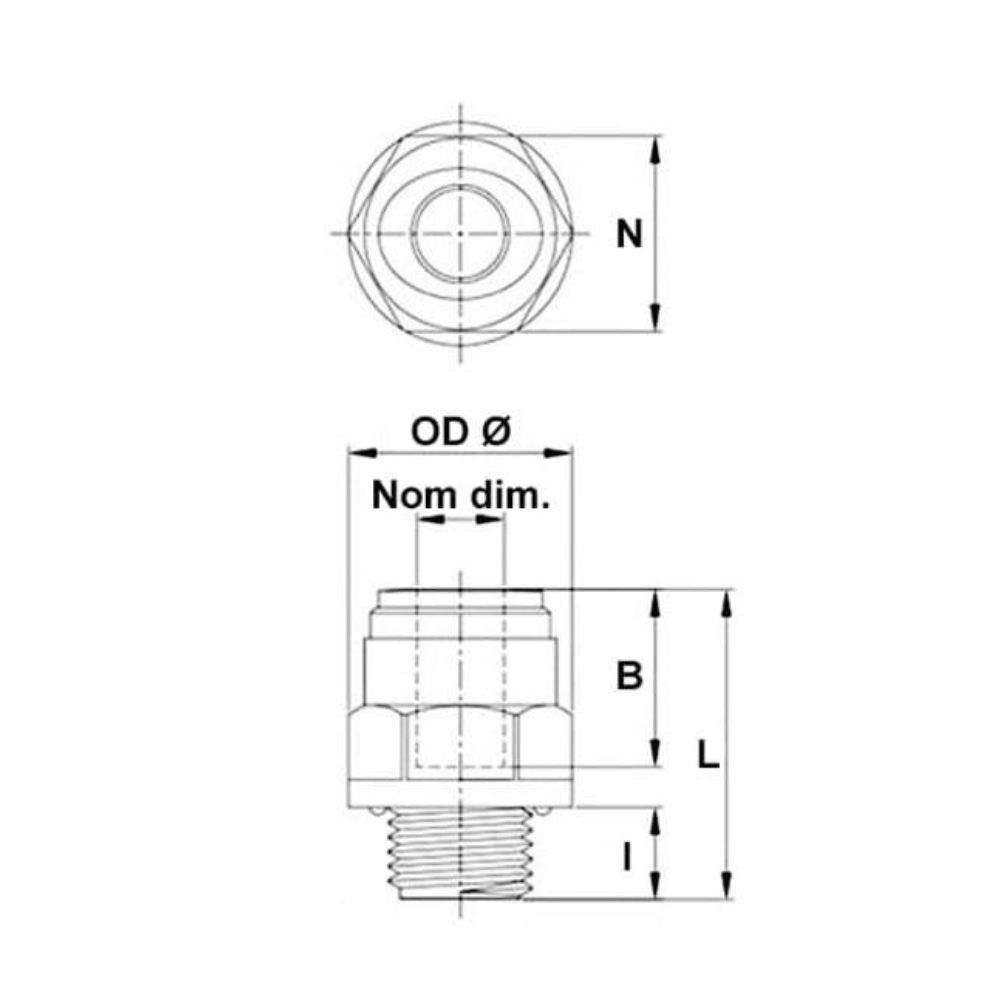

Item number Nominal dim.
mm.		 Connection
RG		 OD Ø dia.
mm.		 Length B
mm		 Length L
mm.		 Thread length I
mm.		 Key width
mm.		 Net weight
kg.		 Base unit Quantity
02791HPC0601W 6,0 1/8" 16,6 16,1 24,1 6,0 15,0 0,0033 PCS
02791HPC0602W 6,0 1/4" 20,5 16,1 24,1 8,5 18,0 0,0048 PCS
02791HPC0801W 8,0 1/8" 18,5 17,5 27,0 6,0 17,0 0,0052 PCS
02791HPC0802W 8,0 1/4" 20,5 17,5 28,5 8,5 18,0 0,0061 PCS
02791HPC0803W 8,0 3/8" 24,0 17,5 26,5 9,0 21,0 0,007 PCS
02791HPC0804W 8,0 1/2" 28,5 17,5 29,5 12,5 26,0 0,0119 PCS
02791HPC1002W 10,0 1/4" 21,1 20,1 30,8 8,5 19,0 0,0072 PCS
02791HPC1003W 10,0 3/8" 24,2 20,1 26,3 9,0 21,0 0,007 PCS
02791HPC1004W 10,0 1/2" 28,5 20,1 29,8 12,5 26,0 0,0113 PCS
02791HPC1203W 12,0 3/8" 27,0 24,7 34,2 9,0 24,0 0,0116 PCS
02791HPC1204W 12,0 1/2" 28,5 24,7 32,7 12,5 26,0 0,0124 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
