Push-in Union connector

Application:

Push-in union connector suitable for compressed air hoses in connection with pneumatically controlled components within food, chemical, and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

  • Made of POM
  • EPDM gasket

Standards:

EC 1935/2004.

Temperature:

The temperature ranges from +1°C to +98°C.
Working pressure 20 bar.

Download data sheet

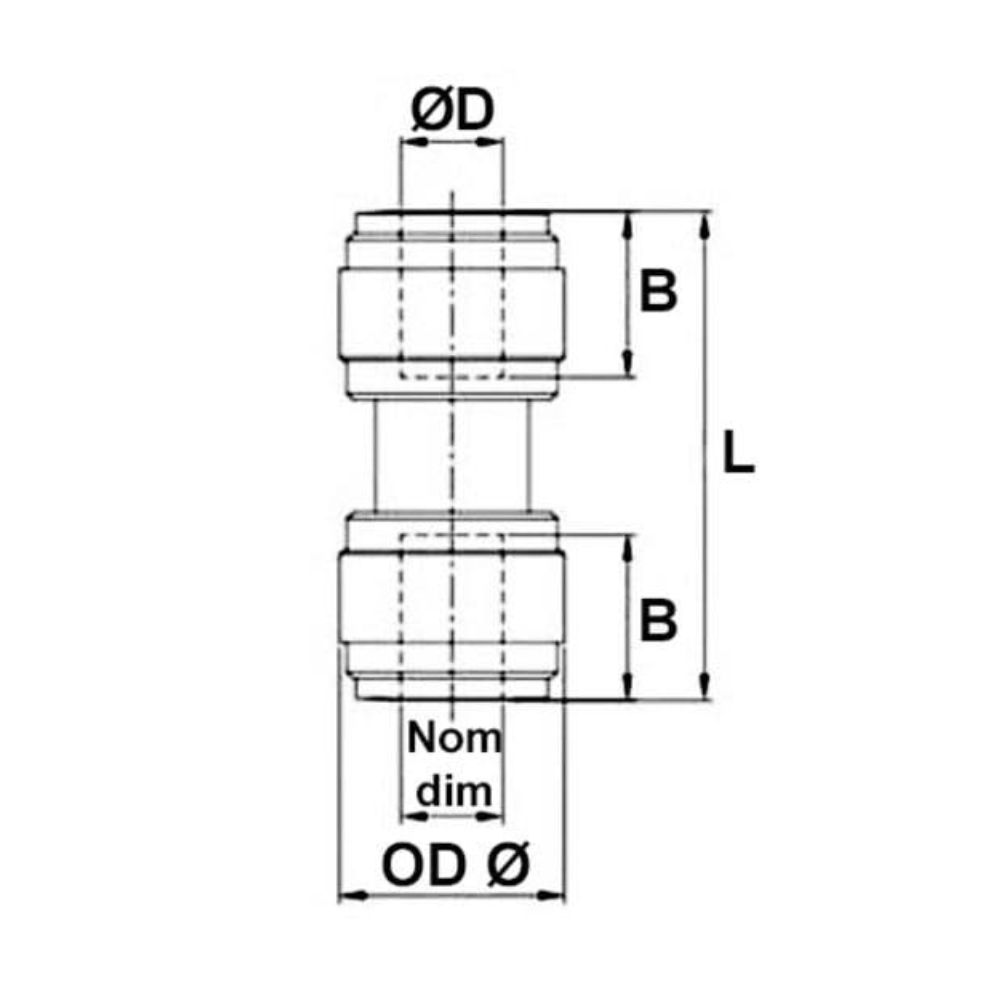

Item number Nominal dim.
mm.		 Nominal dim. ØD
mm		 OD Ø dia.
mm.		 Length B
mm		 Length L
mm.		 Net weight
kg.		 Base unit Quantity
02791HUC0606W 6,0 6,0 15,0 16,1 35,2 0,0047 PCS
02791HUC0808W 8,0 8,0 17,6 17,5 38,2 0,007 PCS
02791HUC1212W 12,0 12,0 23,0 24,7 52,4 0,014 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
