Push-in Union connector, reduction

Application:

Push-in union, reduction suitable for compressed air hoses in connection with pneumatically controlled components within food, chemical, and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

  • Made of POM
  • EPDM gasket

Standards:

EC 1935/2004.

Temperature:

The temperature ranges from +1°C to +98°C.
Working pressure 20 bar.

Download data sheet

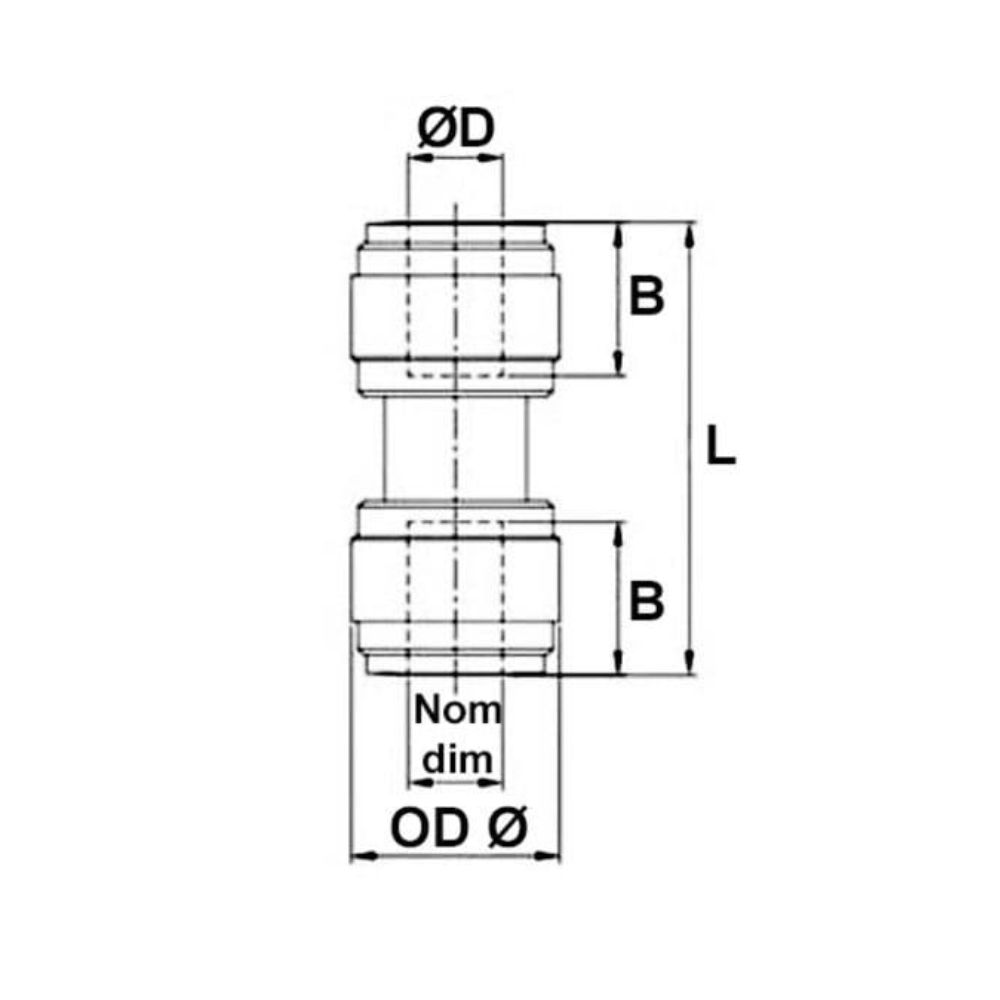

Item number Nominal dim.
mm.		 Nominal dim. ØD
mm		 OD Ø dia.
mm.		 Length B
mm		 Length L
mm.		 Net weight
kg.		 Base unit Quantity
02791HUC0604W 6,0 4,0 15,0 16,1 35,0 0,005 PCS
02791HUC0806W 8,0 6,0 17,6 17,5 37,8 0,0071 PCS
02791HUC1006W 0 0 0 0 0 0 PCS
02791HUC1008W 10,0 8,0 20,0 20,1 42,4 0,00096 PCS
02791HUC1210W 12,0 10,0 23,0 24,7 51,7 0,015 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
