Push-in male connector, BSPT thread, stainless

Push-in Male connector

Application:

Push-in hexagon nipple and BSPP thread suitable for compressed air hoses in connection with pneumatically controlled components within food, chemical and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

All parts are made of acid-proof stainless steel AISI 316.
Viton rubber gasket.

Temperature:

The temperature ranges from -20°C to +150°C.
Maximum working pressure of 20 bar at +20°C.

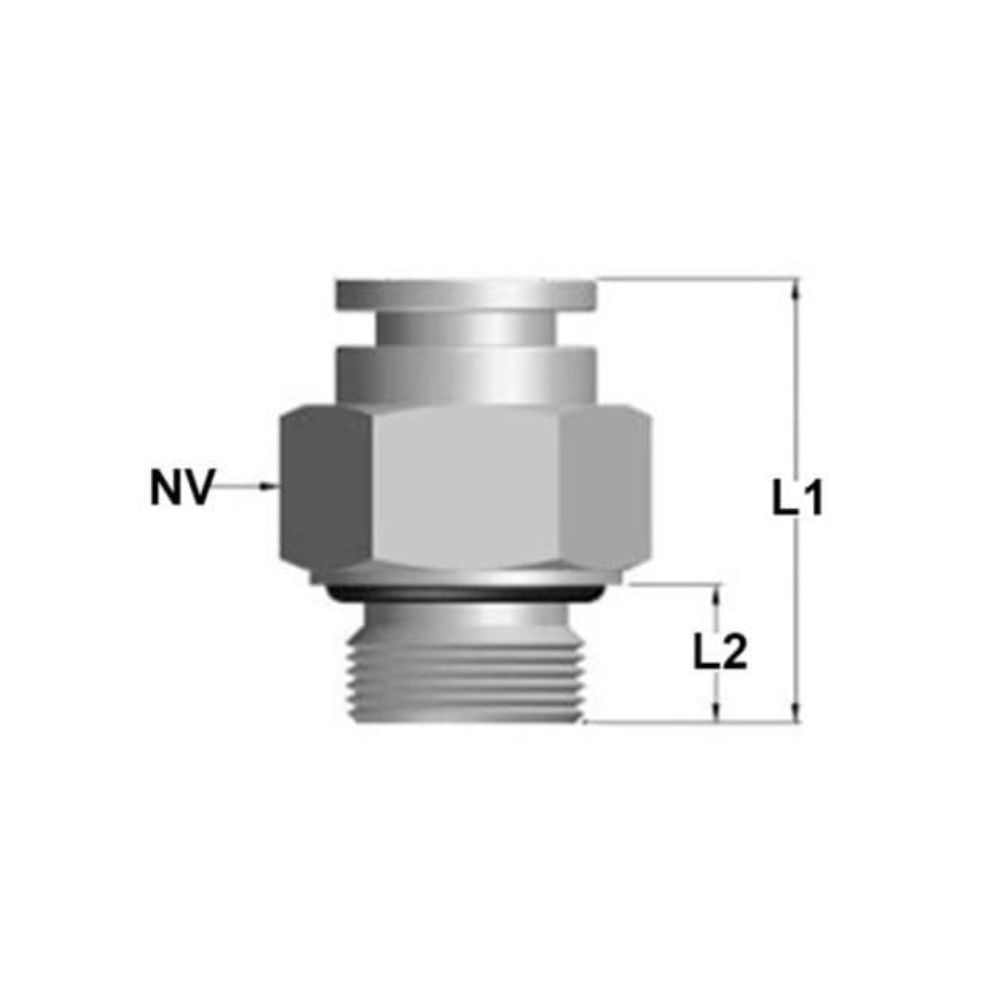

Item number	Nominal dim. mm.	Connection RG	Installation dim. L1 mm.	Installation dim. L2 mm	Key width NV mm.	Net weight kg.	Base unit
0278020400	4,0	M5	24,4	7,5	11,0	0,010	PCS
0278020401	4,0	1/8"	22,6	8,0	14,0	0,017	PCS
0278020501	5,0	1/8"	24,1	8,0	14,0	0,024	PCS
0278020502	5,0	1/4"	24,1	10,0	17,0	0,030	PCS
0278020600	6,0	M5	24,8	5,5	11,0	0,010	PCS
0278020601	6,0	1/8"	24,6	8,0	14,0	0,016	PCS
0278020602	6,0	1/4"	24,6	10,0	17,0	0,023	PCS
0278020801	8,0	1/8"	27,6	8,0	14,0	0,017	PCS
0278020802	8,0	1/4"	26,6	10,0	17,0	0,024	PCS
0278020803	8,0	3/8"	26,7	10,0	21,0	0,037	PCS
0278021002	10,0	1/4"	29,6	10,0	17,0	0,280	PCS
0278021003	10,0	3/8"	26,8	10,0	21,0	0,035	PCS
0278021202	12,0	1/4"	31,0	10,0	21,0	0,035	PCS
0278021203	12,0	3/8"	31,0	10,0	21,0	0,040	PCS
0278021204	12,0	1/2"	30,5	12,0	27,0	0,064	PCS
0278021404	14,0	1/2"	31,5	12,0	27,0	0,103	PCS
0278021604	16,0	1/2"	32,2	10,0	27,0	0,125	PCS

Item number

Nominal dim.
mm.

Connection
RG

Installation dim. L1
mm.

Installation dim. L2
mm

Key width NV
mm.

Net weight
kg.

Base unit

Quantity

0278020400

4,0

24,4

7,5

11,0

0,010

PCS

0278020401

4,0

1/8"

22,6

8,0

14,0

0,017

PCS

0278020501

5,0

1/8"

24,1

8,0

14,0

0,024

PCS

0278020502

5,0

1/4"

24,1

10,0

17,0

0,030

PCS

0278020600

6,0

24,8

5,5

11,0

0,010

PCS

0278020601

6,0

1/8"

24,6

8,0

14,0

0,016

PCS

0278020602

6,0

1/4"

24,6

10,0

17,0

0,023

PCS

0278020801

8,0

1/8"

27,6

8,0

14,0

0,017

PCS

0278020802

8,0

1/4"

26,6

10,0

17,0

0,024

PCS

0278020803

8,0

3/8"

26,7

10,0

21,0

0,037

PCS

0278021002

10,0

1/4"

29,6

10,0

17,0

0,280

PCS

0278021003

10,0

3/8"

26,8

10,0

21,0

0,035

PCS

0278021202

12,0

1/4"

31,0

10,0

21,0

0,035

PCS

0278021203

12,0

3/8"

31,0

10,0

21,0

0,040

PCS

0278021204

12,0

1/2"

30,5

12,0

27,0

0,064

PCS

0278021404

14,0

1/2"

31,5

12,0

27,0

0,103

PCS

0278021604

16,0

1/2"

32,2

10,0

27,0

0,125

PCS
