Push-in Swivel, male tee BSPT thread, stainless

Push-in tee, swivel

Application:

Push-in T-piece with swivel and BSPP thread suitable for compressed air hoses in connection with pneumatically controlled components within food, chemical, and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

All parts are made of acid-proof stainless steel AISI 316.
Viton rubber gasket.

Temperature:

The temperature ranges from -20°C to +150°C.
Maximum working pressure of 20 bar at +20°C.

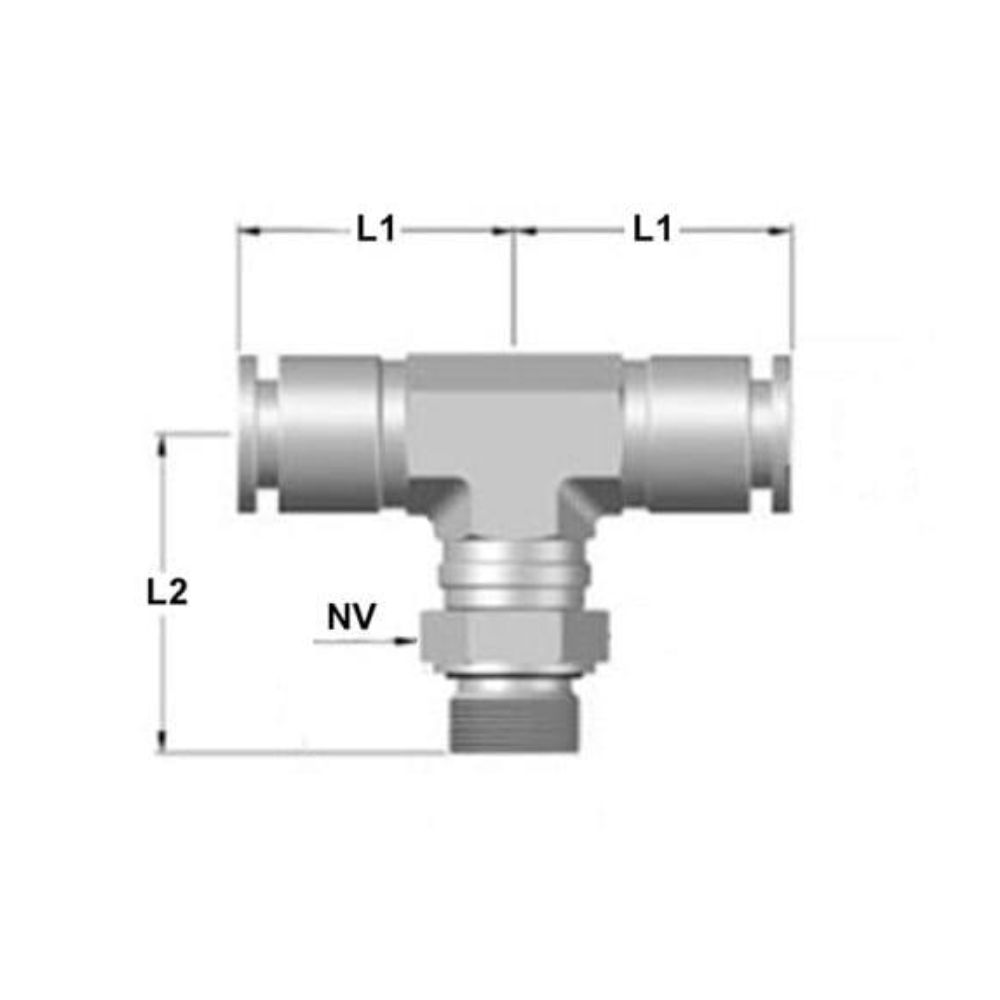

Item number	Nominal dim. mm.	Connection RG	Installation dim. L1 mm.	Installation dim. L2 mm	Key width NV mm.	Net weight kg.	Base unit
0278070400	4,0	M5	34,2	26,5	11,0	0,031	PCS
0278070401	4,0	1/8"	34,2	26,9	11,0	0,036	PCS
0278070601	6,0	1/8"	41,2	27,8	13,0	0,045	PCS
0278070602	6,0	1/4"	41,2	30,0	13,0	0,053	PCS
0278070801	8,0	1/8"	42,8	29,8	14,0	0,053	PCS
0278070802	8,0	1/4"	42,8	32,0	14,0	0,060	PCS
0278070803	8,0	3/8"	42,8	32,0	14,0	0,072	PCS
0278071002	10,0	1/4"	49,2	33,1	17,0	0,084	PCS
0278071003	10,0	3/8"	49,2	33,1	17,0	0,091	PCS
0278071202	12,0	1/4"	51,2	35,3	21,0	0,122	PCS
0278071203	12,0	3/8"	51,2	35,8	21,0	0,129	PCS
0278071204	12,0	1/2"	51,2	38,8	21,0	0,149	PCS

Item number

Nominal dim.
mm.

Connection
RG

Installation dim. L1
mm.

Installation dim. L2
mm

Key width NV
mm.

Net weight
kg.

Base unit

Quantity

0278070400

4,0

34,2

26,5

11,0

0,031

PCS

0278070401

4,0

1/8"

34,2

26,9

11,0

0,036

PCS

0278070601

6,0

1/8"

41,2

27,8

13,0

0,045

PCS

0278070602

6,0

1/4"

41,2

30,0

13,0

0,053

PCS

0278070801

8,0

1/8"

42,8

29,8

14,0

0,053

PCS

0278070802

8,0

1/4"

42,8

32,0

14,0

0,060

PCS

0278070803

8,0

3/8"

42,8

32,0

14,0

0,072

PCS

0278071002

10,0

1/4"

49,2

33,1

17,0

0,084

PCS

0278071003

10,0

3/8"

49,2

33,1

17,0

0,091

PCS

0278071202

12,0

1/4"

51,2

35,3

21,0

0,122

PCS

0278071203

12,0

3/8"

51,2

35,8

21,0

0,129

PCS

0278071204

12,0

1/2"

51,2

38,8

21,0

0,149

PCS
