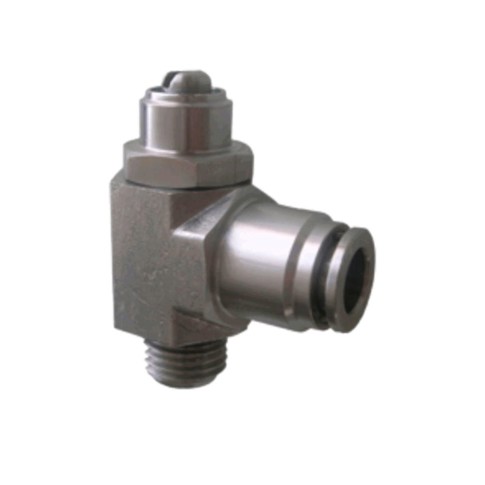

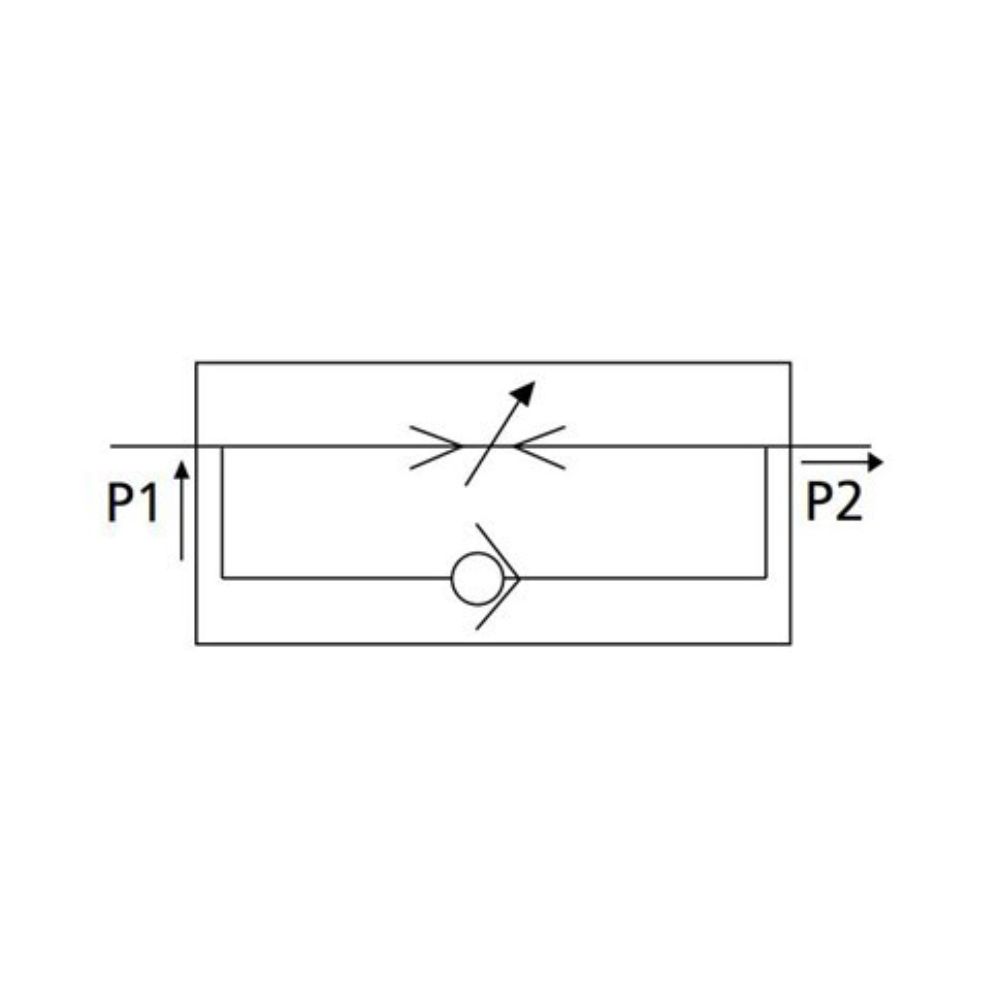

Push-in, unidirectional flow regulator

Application:

Push-in flow regulator for compressed air hoses in connection with pneumatically controlled components within food, chemical, and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.
BSPP thread.

Quality:

All parts are made of acid-proof stainless steel AISI 316.
Viton rubber gasket.

Temperature:

The temperature ranges from -20°C to +150°C.
Maximum working pressure of 20 bar at +20°C.

Download data sheet

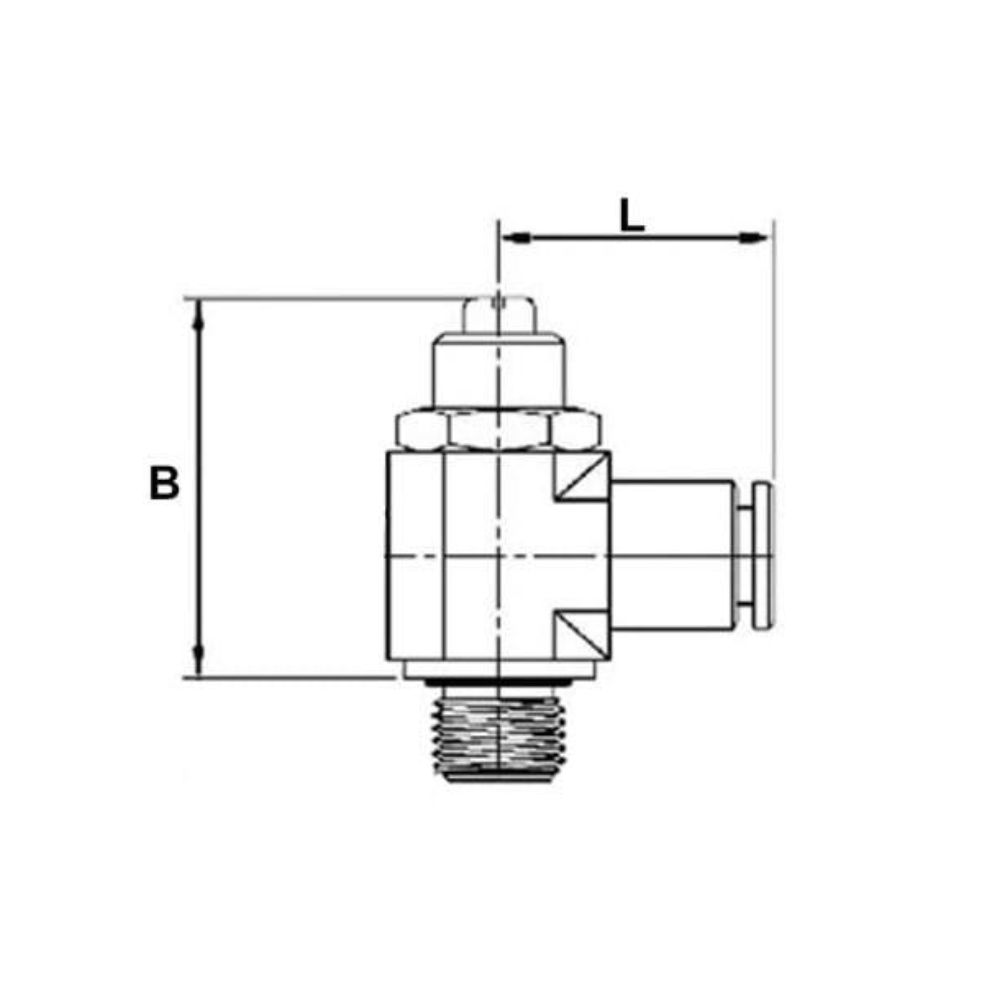

Item number Nominal dim.
mm.		 Connection
RG		 Length L
mm.		 Height B
mm		 Installation dim. L
mm.		 Slange dimension Ø - mm. Net weight
kg.		 Base unit Quantity
0278150601 6,0 1/8" 24,0 38,0 38,0 6 x 4 0,044 PCS
0278150602 6,0 1/4" 28,0 40,0 40,0 6 x 4 0,084 PCS
0278150801 8,0 1/8" 24,0 38,0 38,0 8 x 6 0,046 PCS
0278150802 8,0 1/4" 28,0 40,0 40,0 8 x 6 0,080 PCS
0278151002 10,0 1/4" 28,0 40,0 40,0 10 x 8 0,083 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
