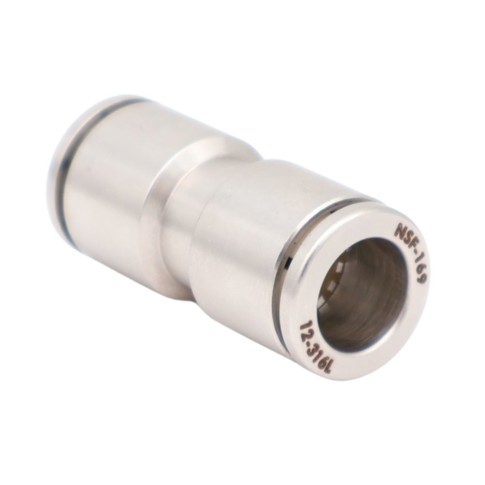

Push-in Union connector

Application:

Push-in Union for compressed air hoses in connection with pneumatically controlled components within food, chemical, and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.
Metric tube.

Quality:

All parts are made of acid-proof stainless steel AISI 316.
Viton rubber gasket.

Temperature:

The temperature ranges from -20°C to +150°C.
Maximum working pressure of 20 bar at +20°C.

Download data sheet

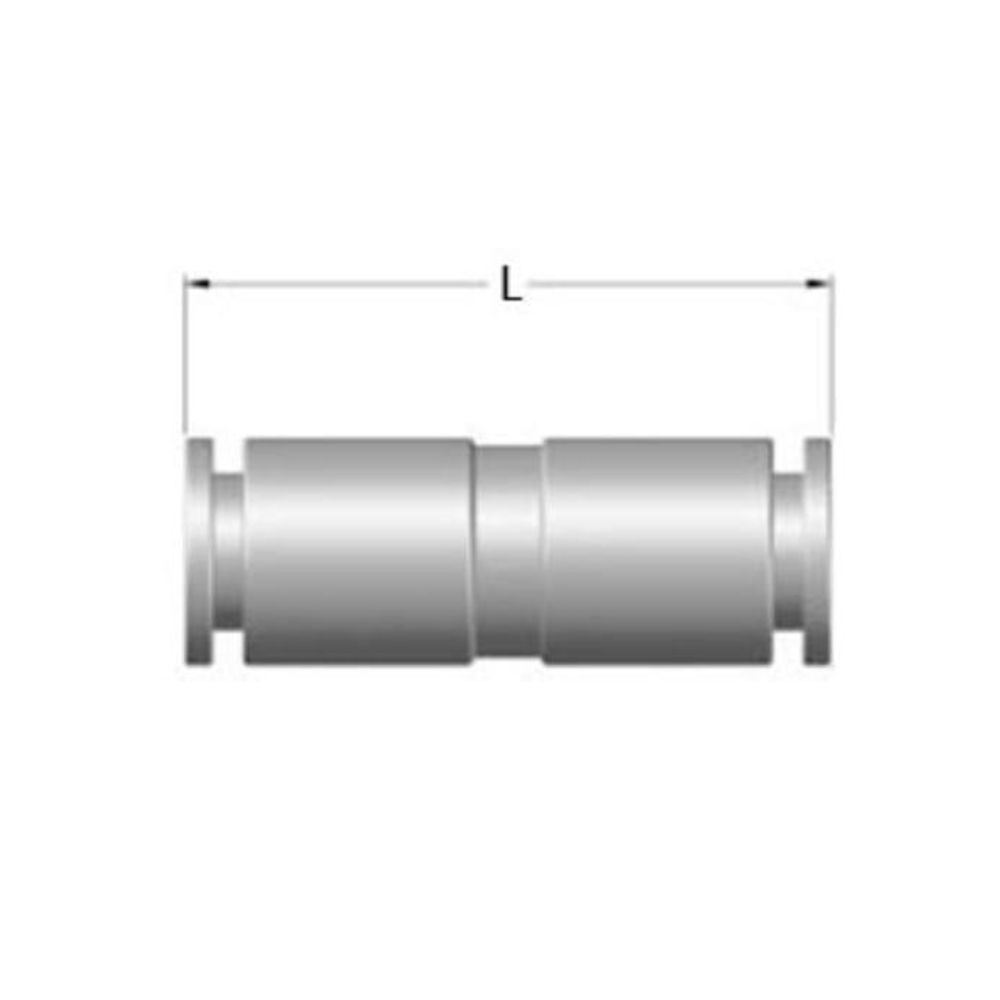

Item number	Nominal dim. mm.	Installation dim. L mm.	Net weight kg.	Base unit
0278100400	4,0	34,6	0,014	PCS
0278100500	5,0	34,6	0,020	PCS
0278100600	6,0	35,6	0,020	PCS
0278100800	8,0	35,6	0,021	PCS
0278101000	10,0	35,6	0,030	PCS
0278101200	12,0	38,8	0,040	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
