Push-on male connector, BSPP

Application:

Push-on hexagon nipple suitable for air, water, and food.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

Made of stainless steel AISI 316.

Temperature:

The temperature ranges from -40°C to +140°C.
Maximum working pressure of 25 bar at +20°C.

Download data sheet

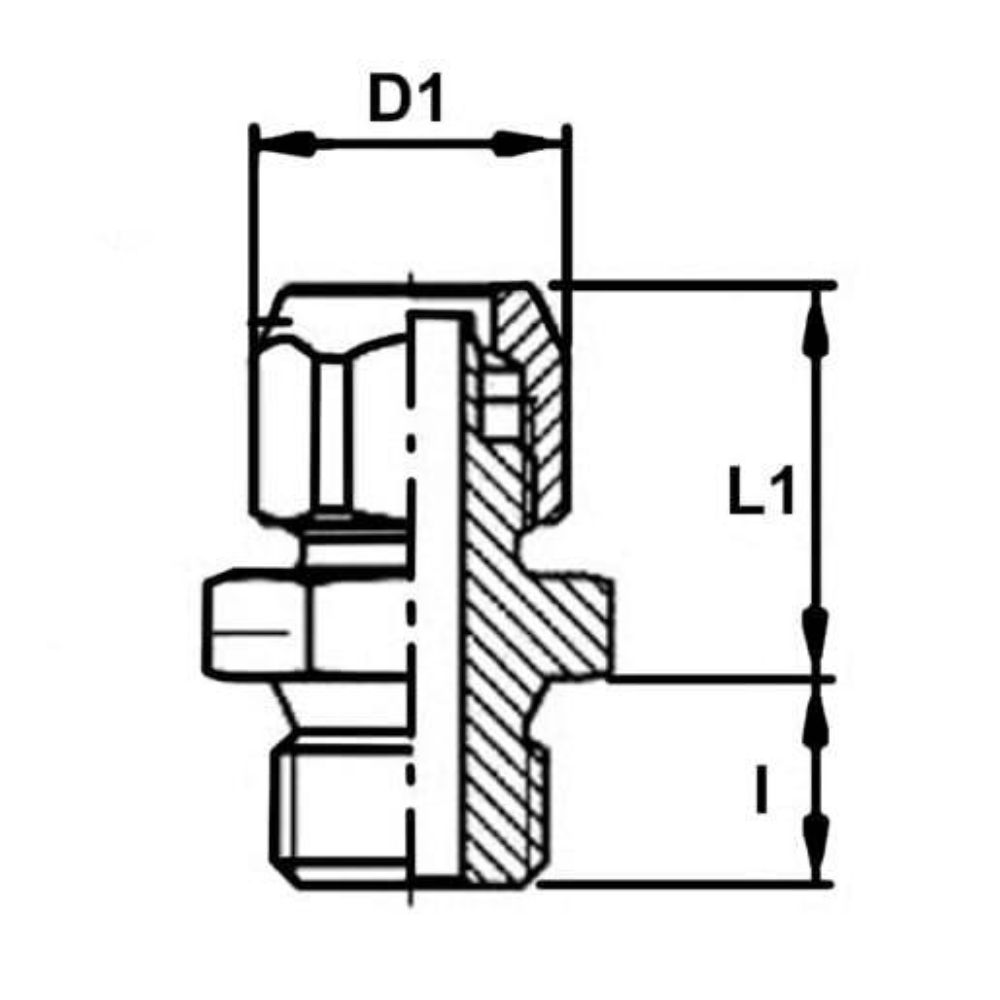

Item number Nominal dim.
mm.
Connection
RG
D1 dia.
mm.
Installation dim. L1
mm.
Thread length I
mm.
Net weight
kg.
Base unit Quantity
0278270601 6,0 1/8" 13,0 18,5 8,0 0,015 PCS
0278270602 6,0 1/4" 13,0 19,0 10,0 0,025 PCS
0278270801 8,0 1/8" 15,5 18,5 8,0 0,018 PCS
0278270802 8,0 1/4" 15,5 19,0 10,0 0,027 PCS
0278271001 10,0 1/8" 18,5 20,0 8,0 0,028 PCS
0278271002 10,0 1/4" 18,5 20,5 10,0 0,032 PCS
0278271003 10,0 3/8" 18,5 20,5 10,0 0,040 PCS
0278271203 12,0 3/8" 21,0 22,0 10,0 0,034 PCS
0278271204 12,0 1/2" 21,0 22,5 12,0 0,034 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
