Push-on Male elbow BSPT

Application:

Push-on angle with BSPT thread and suitable for air, water, and food.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

Made of stainless steel AISI 316.

Temperature:

The temperature ranges from -40°C to +140°C.
Maximum working pressure of 25 bar at +20°C.

Download data sheet

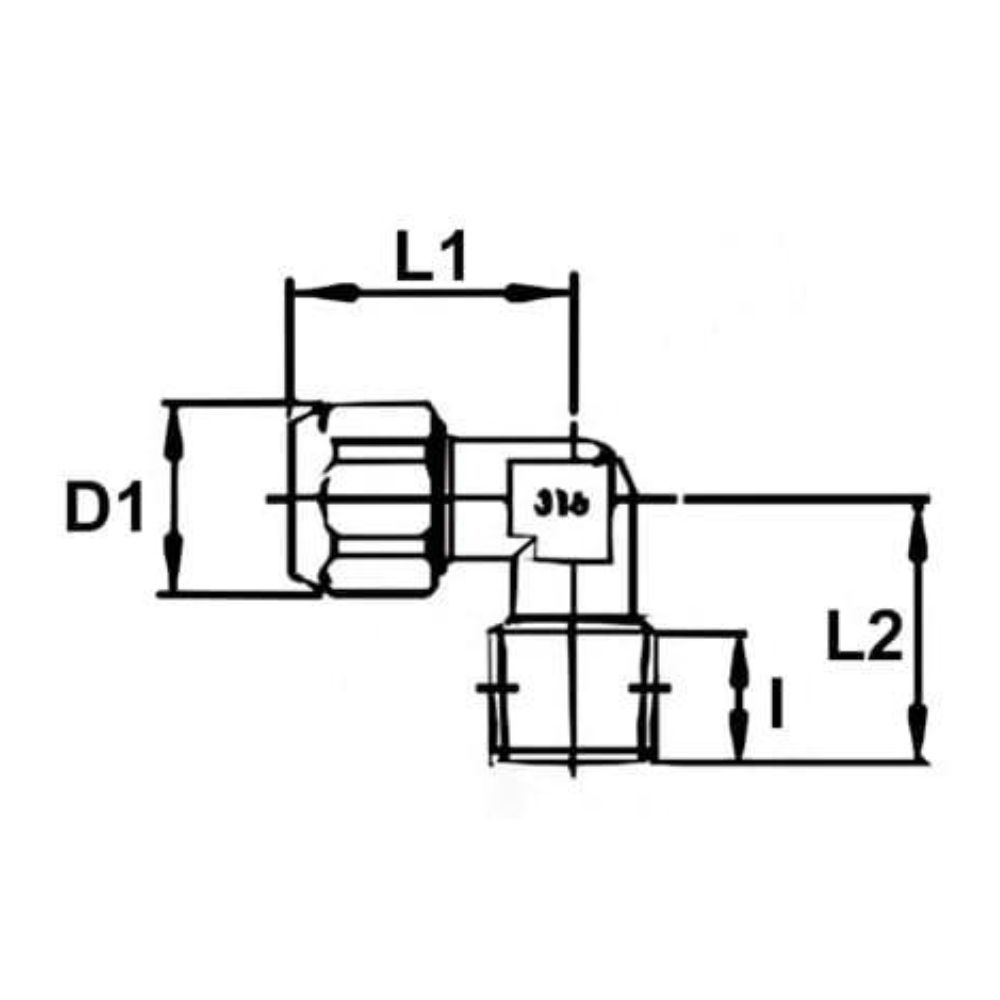

Item number Nominal dim.
mm.
Connection
RG
D1 dia.
mm.
Installation dim. L1
mm.
Installation dim. L2
mm
Thread length I
mm.
Net weight
kg.
Base unit Quantity
0278290601 6,0 1/8" 13,0 22,5 18,5 9,0 0,019 PCS
0278290602 6,0 1/4" 13,0 22,5 21,0 10,5 0,022 PCS
0278290801 8,0 1/8" 15,5 22,5 18,5 9,0 0,020 PCS
0278290802 8,0 1/4" 15,5 21,4 32,0 9,0 0,053 PCS
0278291002 10,0 1/4" 18,5 24,5 21,0 10,5 0,028 PCS
0278291204 12,0 1/2" 21,0 30,5 29,0 14,0 0,040 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
