Push-on swivel male tee, BSPP

Application:

Push-on T-piece with swivel and BSPP thread suitable for air, water, and food.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

Made of stainless steel AISI 316.

Temperature:

The temperature ranges from -40°C to +140°C.
Maximum working pressure of 25 bar at +20°C.

Download data sheet

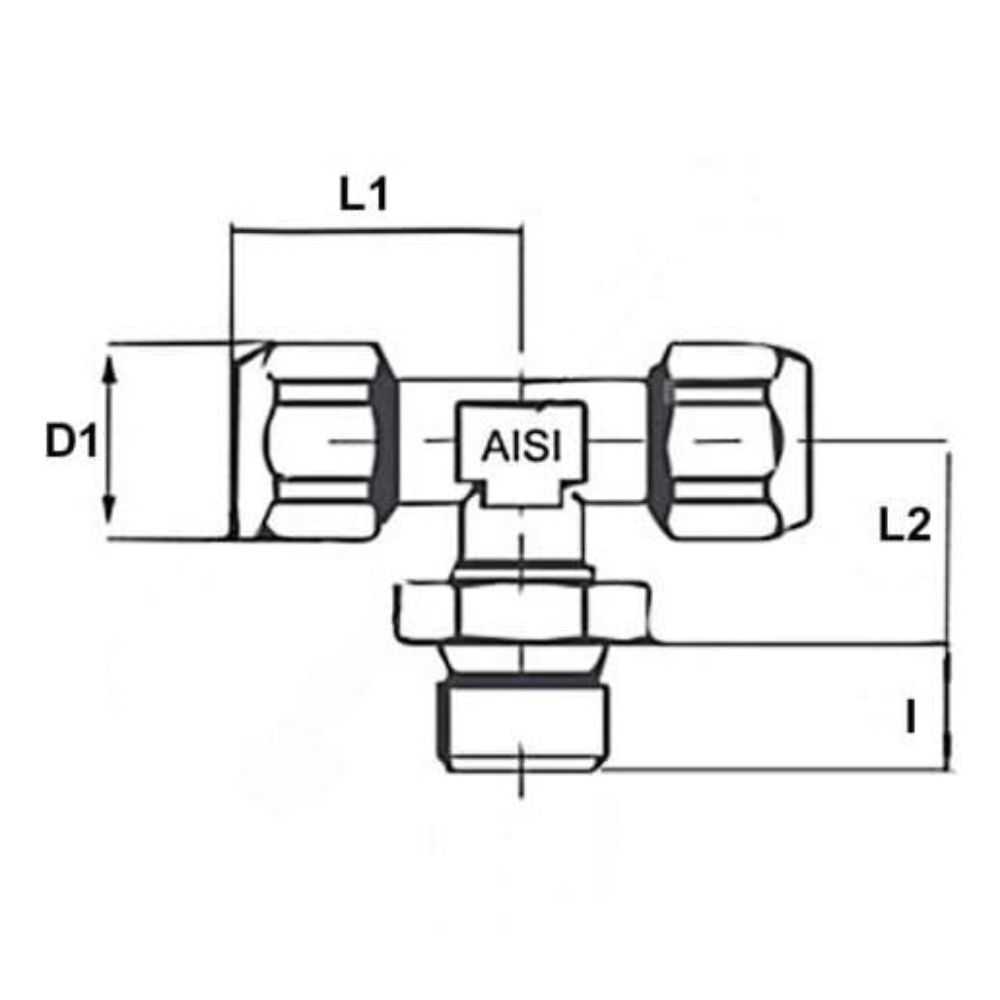

Item number Nominal dim.
mm.
Connection
RG
D1 dia.
mm.
Installation dim. L1
mm.
Installation dim. L2
mm
Thread length I
mm.
Net weight
kg.
Base unit Quantity
0278310601 6,0 1/8" 13,0 22,5 14,0 7,5 0,036 PCS
0278310602 6,0 1/4" 13,0 22,5 14,5 11,0 0,038 PCS
0278310801 8,0 1/8" 15,0 22,5 14,0 7,5 0,037 PCS
0278310802 8,0 1/4" 15,0 22,5 14,5 11,0 0,041 PCS
0278311002 10,0 1/4" 18,5 25,0 14,5 11,0 0,054 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
