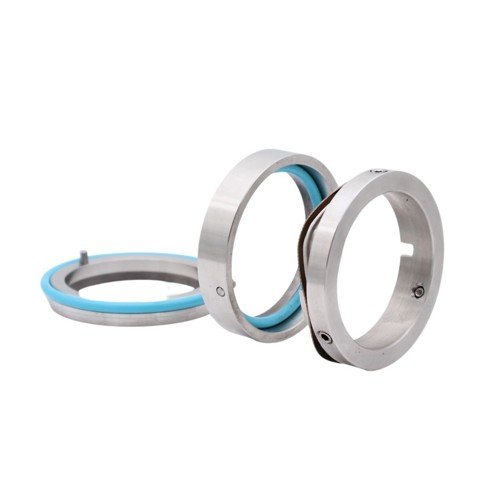

CL/Howard mechanical seal

Application:

CL/Howard mechanical seal for CL-1, -2, -3/APV-Howard pumps.

Construction:

  • Mechanical seal with wave spring
  • The rotating part is held on the shaft with three screws
  • Provided with an O-ring that acts as secondary sealing around the shaft
  • Is not directional
  • The compression spring is external

Quality:

  • Gaskets in either nitrile, EPDM or Viton rubber
  • The slide ring is in carbon, silicon or tungsten
  • The seat is made of stainless steel, silicon, or tungsten
Download data sheet
Item number Shaft dia.
mm		 Rotating part
material		 Stationary part
material		 Elastomer
type		 Pump
type		 Base unit Quantity
03452550287E 28,6 ( 1 1/8") Sic Sic EPDM CL-1 PCS
03452550287N 28,6 ( 1 1/8") Sic Sic NBR CL-1 PCS
03452550287V 28,6 ( 1 1/8") Sic Sic Viton CL-1 PCS
03452550289E 28,6 ( 1 1/8") Tc Tc EPDM CL-1 PCS
03452550289N 28,6 ( 1 1/8") Tc Tc NBR CL-1 PCS
03452550289V 28,6 ( 1 1/8") Tc Tc Viton CL-1 PCS
03452550471V 47,6 ( 1 7/8") Car Stainless Viton CL-2 PCS
03452550477E 47,6 ( 1 7/8") Sic Sic EPDM CL-2 PCS
03452550477N 47,6 ( 1 7/8") Sic Sic NBR CL-2 PCS
03452550477V 47,6 ( 1 7/8") Sic Sic Viton CL-2 PCS
03452550479E 47,6 ( 1 7/8") Tc Tc EPDM CL-2 PCS
03452550479N 47,6 ( 1 7/8") Tc Tc NBR CL-2 PCS
03452550479V 47,6 ( 1 7/8") Tc Tc Viton CL-2 PCS
03452550541V 53,9 ( 2 1/8") Car Stainless Viton CL-3 PCS
03452550547V 53,9 ( 2 1/8") Sic Sic Viton CL-3 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
