130 mechanical seal

Application:

Strong construction and suitable for liquids that contain crystals, or where the viscosity is high, such as sugar.

Construction:

  • Mechanical seal with springs protected in stainless steel housing
  • The housing is mounted with O-ring that acts as secondary seal around the shaft
  • Combined with O-ring seats
  • Is not directional

Quality:

  • Housing and springs in stainless steel
  • O-rings in NBR, EPDM or Viton rubber
  • Sealing ring in carbon or silicon
  • The seat is made of stainless steel, ceramic or silicon

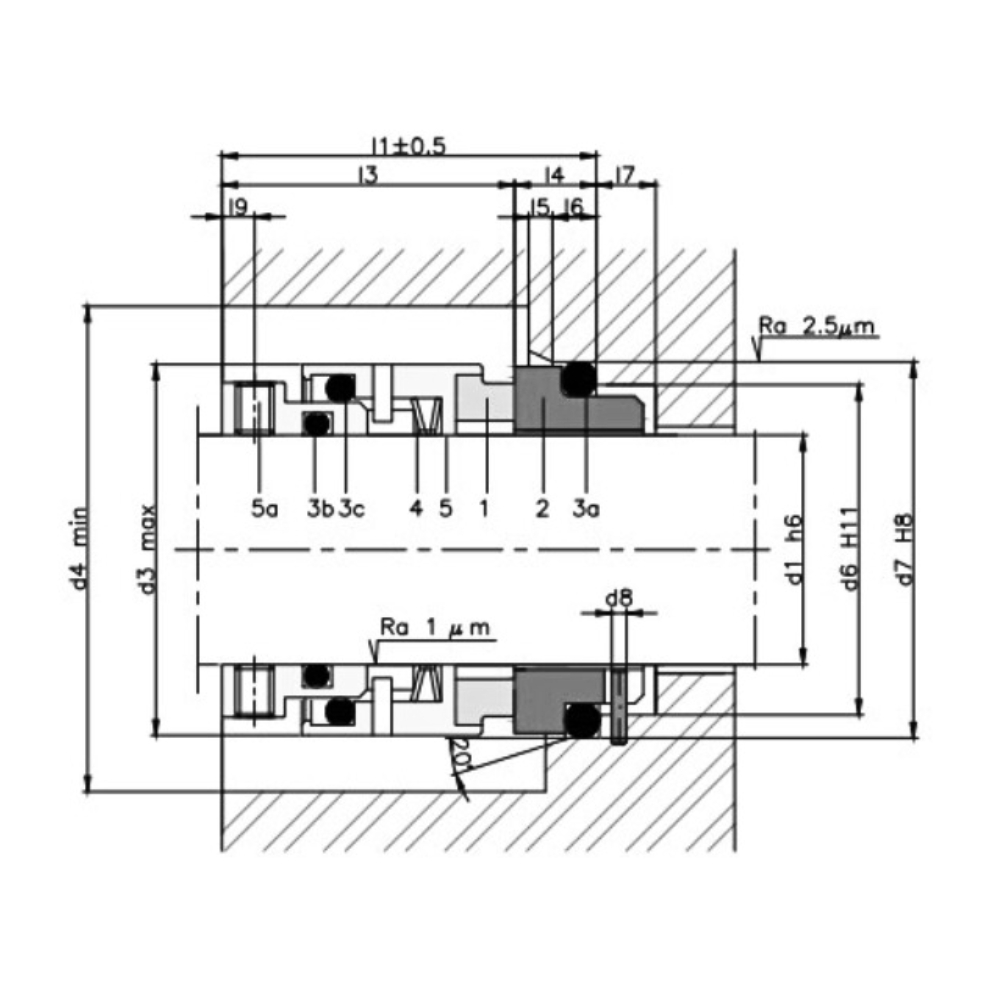

Components:

1. Rotating contact surface
2. Stationary contact surface
3a. O-rings
3b. O-rings
3c. O-rings
4. Spring
5. Metal frame
6. Set screws

Download data sheet

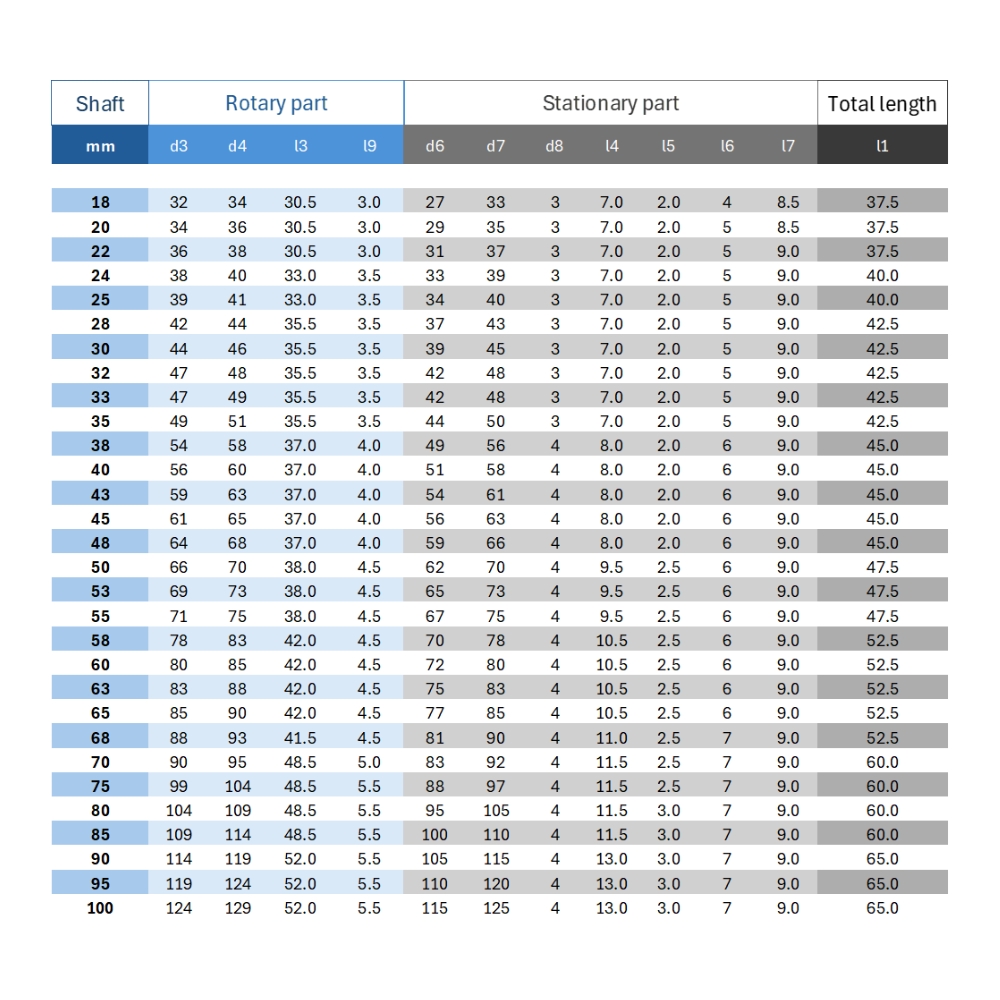

Item number Shaft dia.
mm		 Rotating part
material		 Stationary part
material		 Elastomer
type		 Stationary
type		 Base unit Quantity
03451300167V 16,0 Sic Sic Viton PCS
03451300245V 24,0 Car Sic Viton PCS
03451300247E 24,0 Sic Sic EPDM PCS
03451300247V 24,0 Sic Sic Viton PCS
03451300253V 25,0 Car Cer Viton PCS
03451300255V 25,0 Car Sic Viton PCS
0345130025603E 25,0 Car Cer EPDM L60 PCS
0345130025605E 25,0 Car Sic EPDM L60 PCS
03451300257V 25,0 Sic Sic Viton PCS
0345130028065V 28,0 Car Sic Viton L6 PCS
0345130028167E 28,0 Sic Sic EPDM PCS
0345130028167V 28,0 Sic Sic Viton PCS
0345130028605V 28,0 Car Sic Viton L60 PCS
0345130030097V 30,0 Sic Sic Viton L9 PCS
03451300307E 30,0 Sic Sic EPDM PCS
03451300307V 30,0 Sic Sic Viton Viton
03451300337V 33,0 Sic Sic Viton PCS
03451300355E 35,0 Car Sic EPDM L16 PCS
0345130038065V 38,0 Car Sic Viton L6 PCS
0345130038605V 38,0 Car Sic Viton L60 PCS
0345130040065E 40,0 Car Sic EPDM PCS
03451300400L5E 40,0 Car Sic EPDM PCS
03451300407V 40,0 Sic Sic Viton PCS
03451300455E 45,0 Sic Sic EPDM PCS
03451300457V 45,0 Sic Sic Viton PCS
03451300505E 50,0 Car Sic EPDM PCS
03451300505V 50,0 Car Sic Viton PCS
03451300601E 60,0 Car Stainless EPDM PCS
03451300607E 60,0 Sic Sic EPDM PCS
03451300637E 63,0 Sic Sic EPDM PCS
0345130070065V 70,0 Car Sic Viton L6 PCS
0345130070067V 70,0 Sic Sic Viton L6 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
