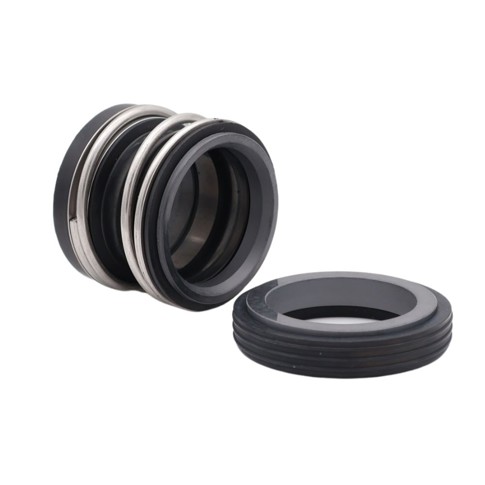

152 HQR mechanical seal

Application:

Mechanical seal for e.g. pipeworks.

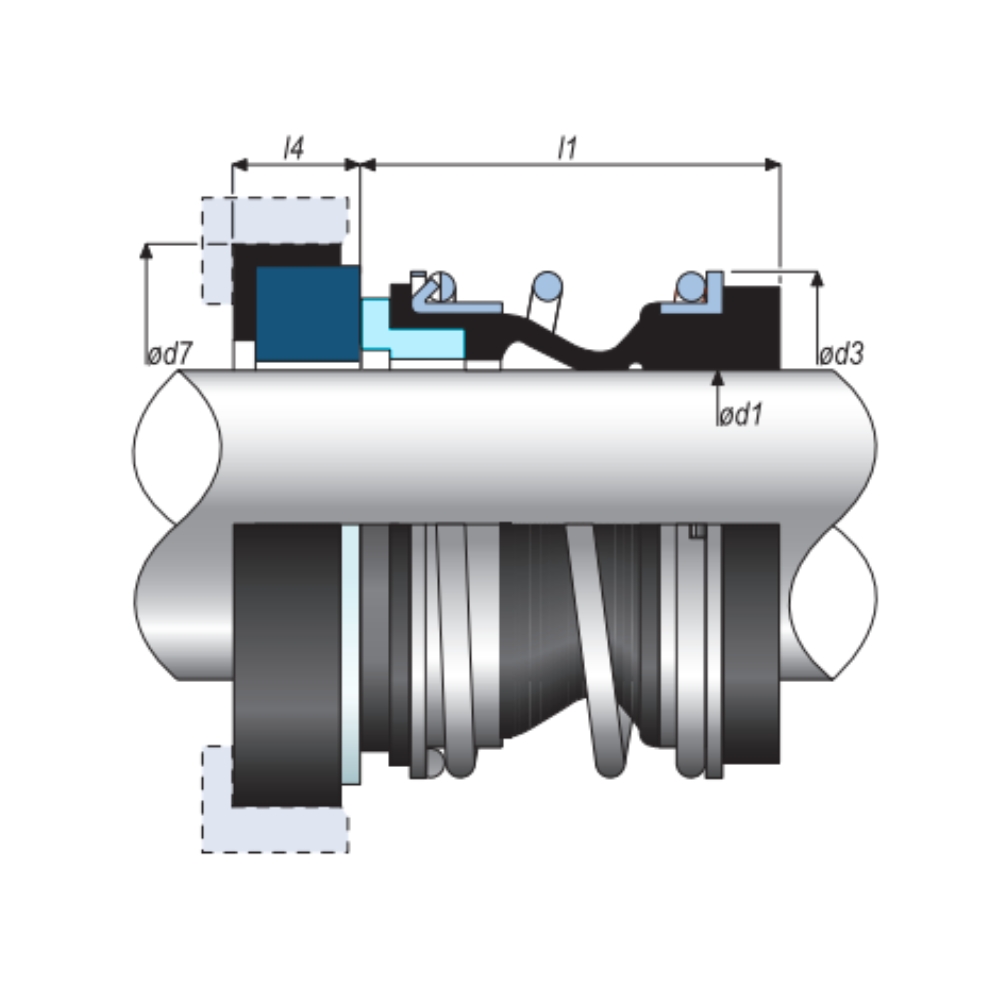

Construction:

  • With rubber sleeve
  • Is not directional
  • External open compression spring

Quality:

  • Spring in stainless steel
  • Rubber bellow in either nitrile or EPDM rubber
  • Seal ring in carbon
  • The seat is made of ceramic or silicon
Download data sheet
Item number Shaft dia.
mm		 Rotating part
material		 Stationary part
material		 Elastomer
type		 Base unit Quantity
03451520155N 15,0 Car Sic NBR PCS
03451520203N 20,0 Car Cer NBR PCS
03451520223E 22,0 Car Cer EPDM PCS
03451520223N 22,0 Car Cer NBR PCS
03451520253E 25,0 Car Cer EPDM PCS
03451520253N 25,0 Car Cer NBR PCS
03451520303E 30,0 Car Cer EPDM PCS
03451520323E 32,0 Car Cer EPDM PCS
03451520383E 32,0 Car Cer EPDM PCS
03451520387E 38,0 Sic Sic EPDM PCS
03451520403E 40,0 Car Cer EPDM PCS
03451520403N 40,0 Car Cer NBR PCS
03451520503E 50,0 Car Cer EPDM PCS
03451520603E 60,0 Car Cer EPDM PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
