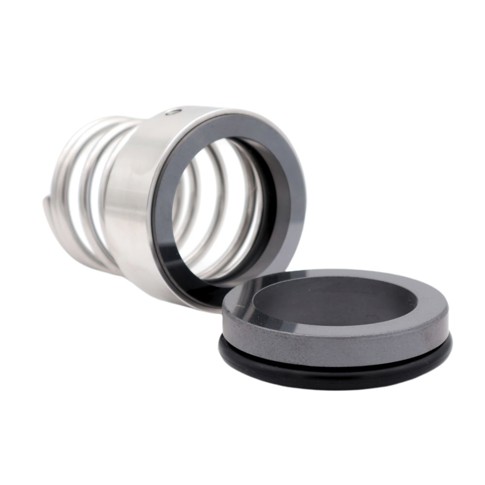

600 mechanical seal

Application:

Strong construction and suitable for liquids that contain crystals, or where the viscosity is high, for example sugar.

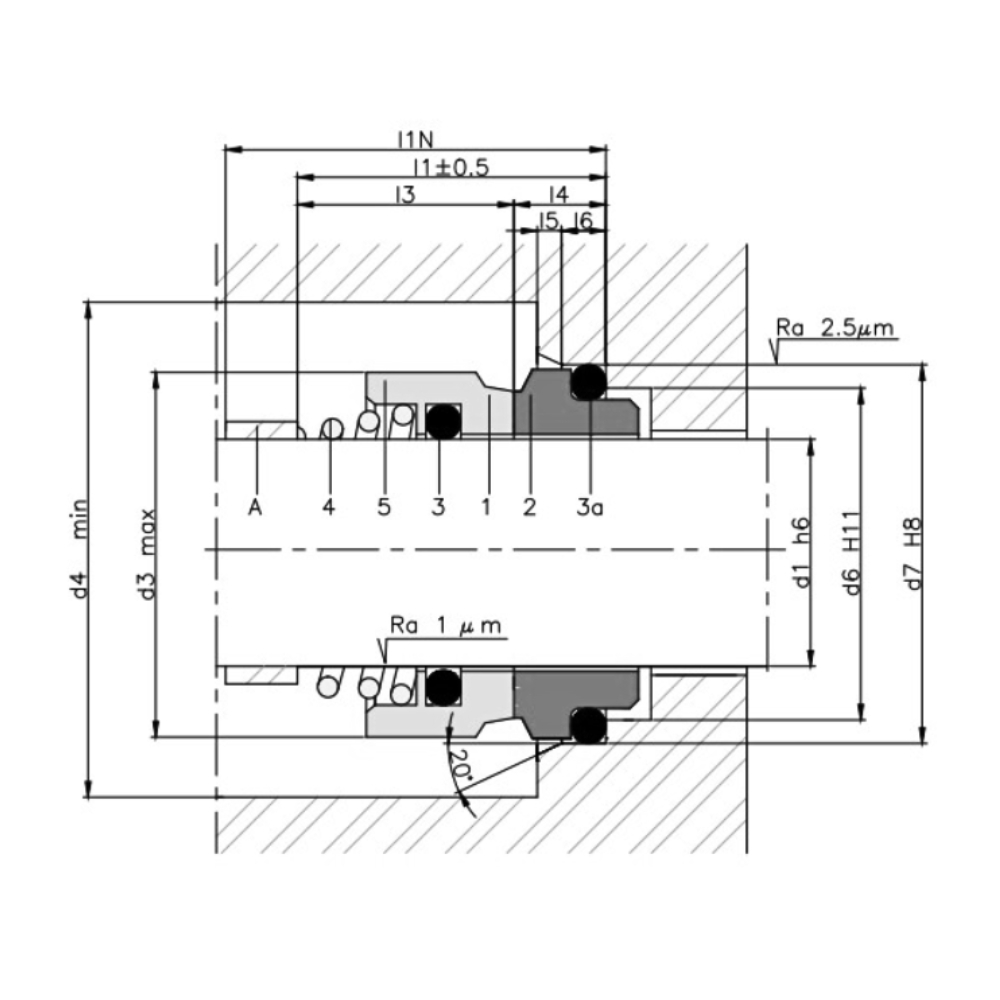

Construction:

Quality:

Components:

1. Rotating contact surface
2. Stationary contact surface
3. O-rings
3a. O-rings
4. Spring
5. Metal frame
A. Spacer not provided with the seal

Download data sheet

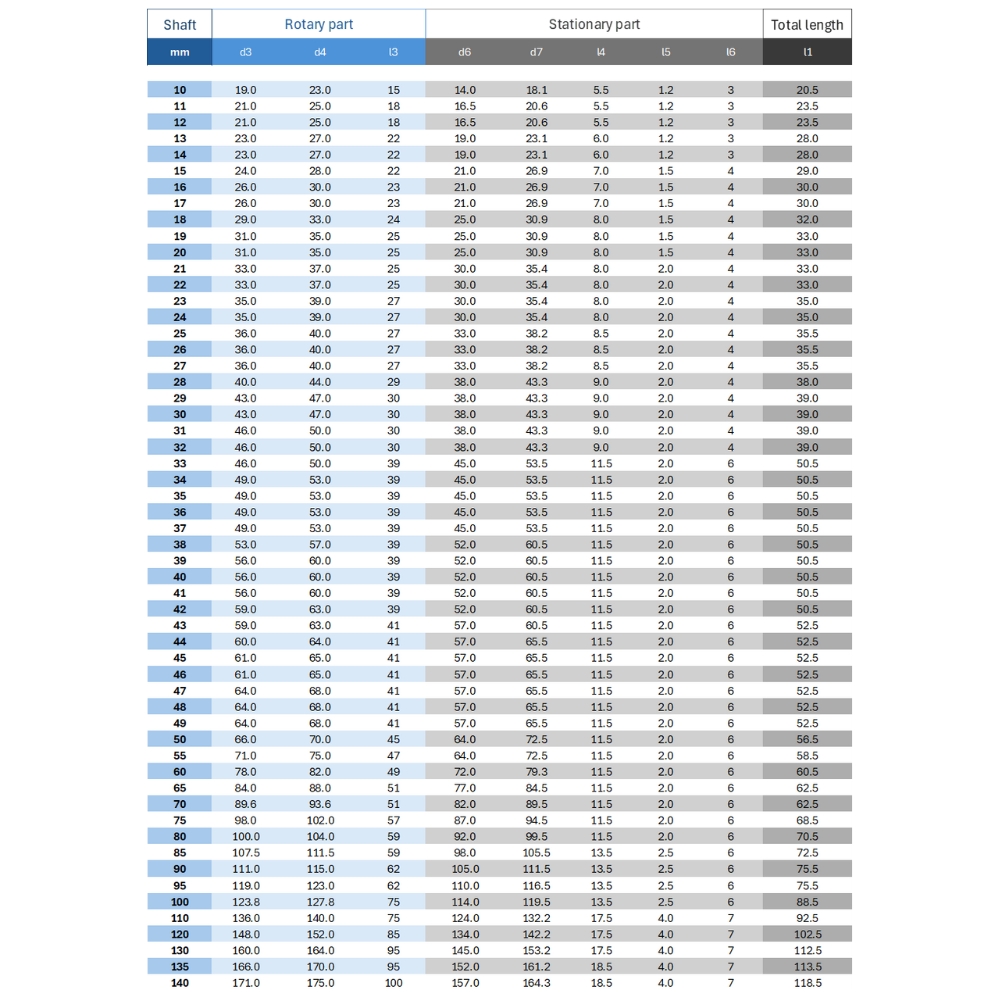

Item number	Shaft dia. mm	Rotating part material	Stationary part material	Elastomer type	Stationary type	Base unit
034560010507V	10,0	Sic	Sic	Viton	L50	PCS
0345600107V	10,0	Sic	Sic	Viton	0	PCS
0345600127V	12,0	Sic	Sic	Viton	0	PCS
034560016001E	16,0	Stainless	Kul	EPDM	0	PCS
034560016007E	16,0	Sic	Sic	EPDM	0	PCS
034560018007N	18,0	Sic	Sic	NBR	0	PCS
034560020011E	20,0	Car	Rustfri	EPDM	DIN L1	PCS
034560020017E	20,0	Sic	Sic	EPDM	DIN L1	PCS
034560022131E	22,0	Car	Kul	EPDM	L13	PCS
0345600240L1E	24,0	Car	Rustfri	EPDM	L	PCS
0345600247E	24,0	Sic	Sic	EPDM	L60	PCS
034560025047E	25,0	Sic	Sic	EPDM	L4	PCS
034560025097E	25,0	Sic	Sic	EPDM	L9	PCS
034560025137V	25,0	Sic	Sic	Viton	L13	PCS
0345600257E	25,0	Sic	Sic	EPDM	L60	PCS
034560028007NV	28,0	Sic	Sic	NBR	0	PCS
034560028007VV	28,0	Sic	Sic	Viton	0	PCS
034560028017E	28,0	Sic	Sic	EPDM	DIN L1	PCS
034560030097E	30,0	Sic	Sic	EPDM	L9	PCS
0345600300L5E	30,0	Car	Sic	EPDM	L	PCS
034560035017E	35,0	Sic	Sic	EPDM	DIN L1	PCS
034560038015N	38,0	Car	Sic	NBR	DIN L1	PCS
034560038015V	38,0	Car	Sic	Viton	DIN L1	PCS
034560038LD1E	38,0	Car	Rustfri	EPDM	DIN L	PCS
034560038LD7V	38,0	Sic	Sic	Viton	DIN L	PCS
034560038LD7VL	38,0	Sic	Sic	Viton	DIN L	PCS
034560043131E	43,0	Car	Rustfri	EPDM	L13	PCS
0345600507V	50,0	Sic	Sic	Viton	DIN	PCS
0345600551F	55,0	Car	Rustfri	FEP	L9	PCS
0345600601E	60,0	Car	Rustfri	EPDM	L13	PCS
034560060L11E	60,0	Car	Rustfri	EPDM	DIN L1	PCS
0345600637N	63,0	Sic	Sic	NBR	DIN	PCS
0345600B161E	16,0	Car	Rustfri	EPDM	DIN	PCS
0345600D30015E	30,0	Car	Sic	EPDM	DIN L	PCS
0345600D32011N	32,0	Car	Rustfri	NBR	DIN L1	PCS
0345600D38LD7E	38,0	Sic	Sic	EPDM	DIN L	PCS
0345600D38LD7EL	38,0	Sic	Sic	EPDM	DIN L	PCS
0345600D551E	55,0	Car	Rustfri	EPDM	DIN L	PCS
0345600D70011E	70,0	Car	Rustfri	EPDM	DIN L	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
