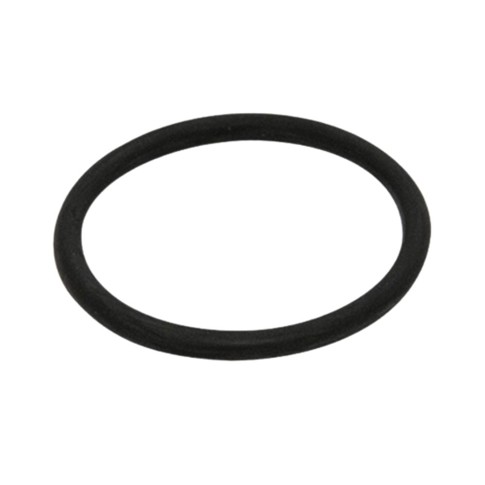

Union gasket, form A, series C

Application:

Gasket for dairy pipe unions, type DIN, aseptic
Good resistance to many organic liquids, including acids, lye and especially CIP
Not suitable for mineral oils and grease

Construction:

Made of ethylene propylene diene monomer rubber, EPDM.

Standards:

Certified by FDA/USP.

Temperature:

The temperature ranges from -40°C to +150°C.

Download data sheet

Item number	Nominal dim. inch	ID Ø dia. mm.	OD Ø dia. mm.	Height H mm.	Elastomer type	Base unit
030322013C	1/2"	12,0	19,0	3,5	EPDM	PCS
030322020C	3/4"	18,0	25,0	3,5	EPDM	PCS
030322025C	1"	24,0	31,0	3,5	EPDM	PCS
030322040C	1½"	37,0	47,0	5,0	EPDM	PCS
030322050C	2"	50,0	60,0	5,0	EPDM	PCS
030322065C	2½"	62,0	72,0	5,0	EPDM	PCS
030322080C	3"	75,0	85,0	5,0	EPDM	PCS
030322100C	4"	100,0	110,0	5,0	EPDM	PCS
030324100C	0	0	0	0	0	0

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
