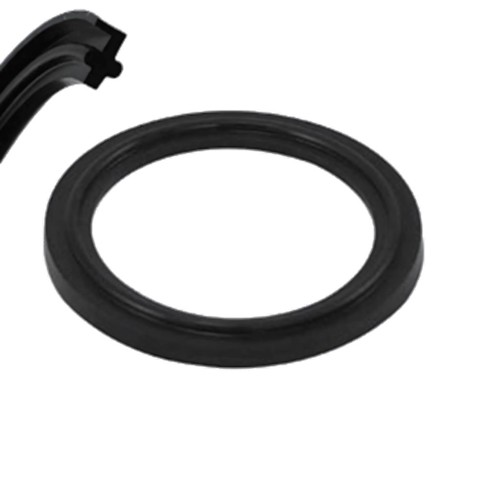

Clamp union lip gasket, EPDM

Application:

Gasket for dairy pipe unions, type CLAMP
Good resistance to many organic liquids, including acids, lye and especially CIP
Not suitable for mineral oils and grease

Construction:

Made of ethylene propylene diene monomer rubber, EPDM.

Standards:

Certified by FDA/USP.

Temperature:

The temperature ranges from -40°C to +150°C.

Download data sheet

Item number	Nominal dim. mm.	ID Ø dia. mm.	OD Ø dia. mm.	Height H mm.	Elastomer type	Base unit
0304410010	10,0	10,2	34,0	2,1	EPDM	PCS
0304410015	15,0	16,2	34,0	2,1	EPDM	PCS
0304410020	20,0	20,2	34,0	2,1	EPDM	PCS
0304410025	25,0	26,2	50,5	2,1	EPDM	PCS
0304410032	32,0	32,2	50,5	2,1	EPDM	PCS
0304410040	40,0	38,2	50,5	2,1	EPDM	PCS
0304410050	50,0	50,2	64,0	2,1	EPDM	PCS
0304410065	65,0	66,2	91,0	2,1	EPDM	PCS
0304410080	80,0	81,2	106,0	2,1	EPDM	PCS
0304410100	100,0	100,2	119,0	2,1	EPDM	PCS
0304410115	115,0	110,3	130,0	2,1	EPDM	PCS
0304410125	125,0	125,2	155,0	2,1	EPDM	PCS
0304410126	125,0	125,2	144,5	2,1	EPDM	PCS
0304410150	150,0	150,2	183,0	2,1	EPDM	PCS
0304410151	150,0	150,2	167,0	2,1	EPDM	PCS
0304410200	200,0	200,2	233,5	2,1	EPDM	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
