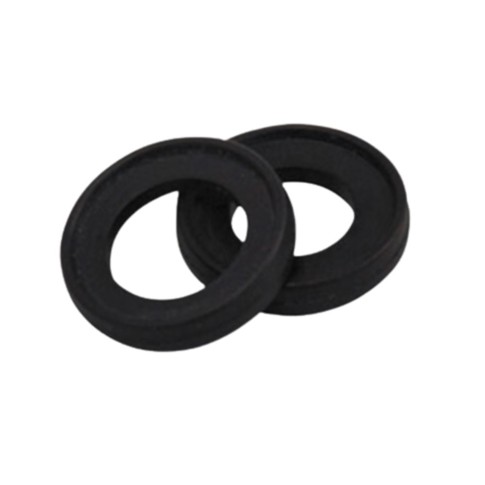

Mini Clamp union lip gasket, EPDM

Application:

Gasket for dairy pipe unions, type MINI CLAMP
Good resistance to many organic liquids, including acids, lye and especially CIP
Not suitable for mineral oils and grease

Construction:

Made of ethylene propylene diene monomer rubber, EPDM.

Standards:

Certified by FDA/USP.

Temperature:

The temperature ranges from -40°C to +150°C.

Download data sheet

Item number	Nominal dim. mm.	ID Ø dia. mm.	OD Ø dia. mm.	Height H mm.	Elastomer type	Base unit
0304212506	6,0	4,2	25,4	2,0	EPDM	PCS
0304212508	8,0	6,2	25,4	2,0	EPDM	PCS
0304212510	10,0	8,2	25,4	2,0	EPDM	PCS
0304212512	12,0	9,6	25,4	2,0	EPDM	PCS
0304212513	13,0	10,6	25,4	2,0	EPDM	PCS
0304212514	14,0	12,3	25,4	2,0	EPDM	PCS
0304212516	16,0	14,2	25,4	2,0	EPDM	PCS
0304212518	18,0	16,0	25,4	2,0	EPDM	PCS
0304212519	19,0	15,9	25,4	2,0	EPDM	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
