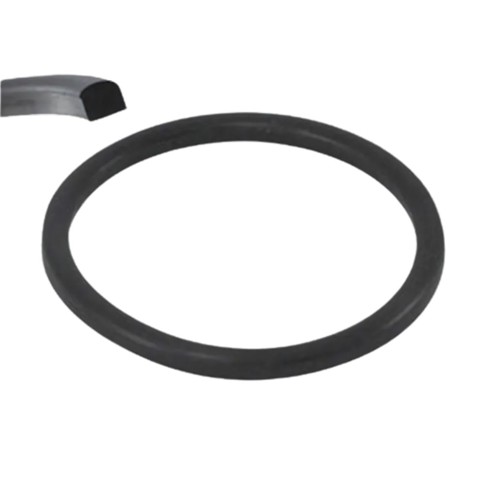

DIN union gasket, EPDM

Application:

Gasket for dairy pipe unions, type DIN
Good resistance to many organic liquids, including acids, lye and especially CIP
Not suitable for mineral oils and grease

Construction:

Made of ethylene propylene diene monomer rubber, EPDM.

Standards:

Certified by FDA/USP.

Temperature:

The temperature ranges from -40°C to +150°C.

Download data sheet

Item number	Nominal dim. mm.	ID Ø dia. mm.	OD Ø dia. mm.	Height H mm.	Elastomer type	Base unit
0303010100	10,0	12,0	20,0	4,5	EPDM	PCS
0303010150	15,0	18,0	26,0	4,5	EPDM	PCS
0303010200	20,0	23,0	33,0	4,5	EPDM	PCS
0303010250	25,0	30,0	40,0	5,0	EPDM	PCS
0303010320	32,0	36,0	46,0	5,0	EPDM	PCS
0303010400	40,0	42,0	52,0	5,0	EPDM	PCS
0303010500	50,0	54,0	64,0	5,0	EPDM	PCS
0303010650	65,0	71,0	81,0	5,0	EPDM	PCS
0303010750	75,0	78,0	88,0	5,0	EPDM	PCS
0303010800	80,0	85,0	95,0	5,0	EPDM	PCS
0303011000	100,0	104,0	114,0	6,0	EPDM	PCS
0303011250	125,0	130,0	142,0	7,0	EPDM	PCS
0303011500	150,0	155,0	167,0	7,0	EPDM	PCS
